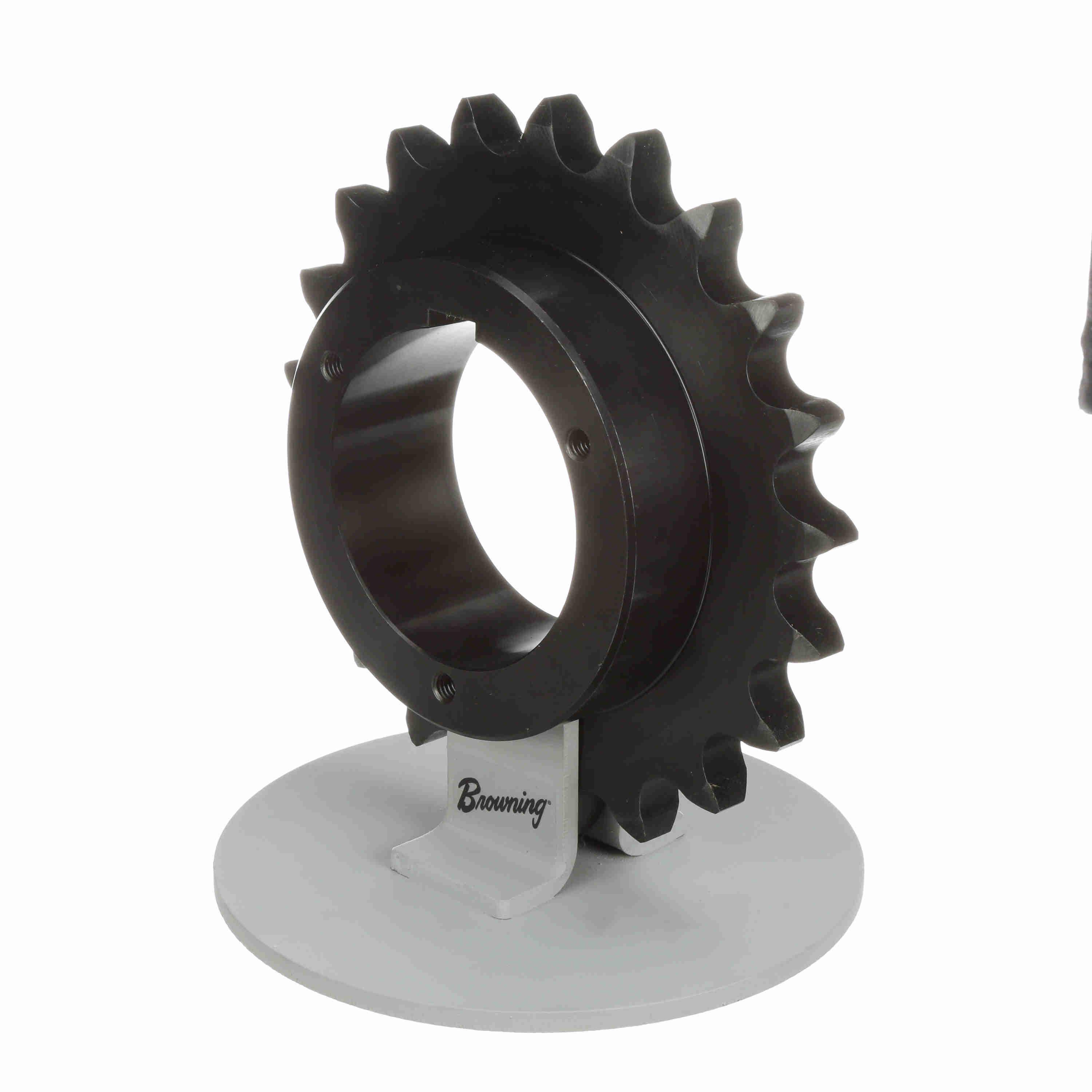

Browning® 3995792 Single Strand Split Taper Bushed Type 4 Roller Chain Sprocket With Hardened Teeth, 1-1/8 in Dia Bore, 9.043 in OD, #100 Chain, 21 Teeth, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289722969
-
Manufacturer Part Number3995792
-
CountryUSA
-
Pitch Diameter8.387 in
-
MaterialSteel
-
Chain Size#100
-
TypeSingle Strand Split Taper Bushed Type 4
-
Hub Diameter5-3/8 in
-
Number of Teeth21
-
Outside Diameter9.043 in
-
Length Through Bore3.219 in
-
Bore Diameter1-1/8 in
-
Alternative Part NumberH100R21
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
