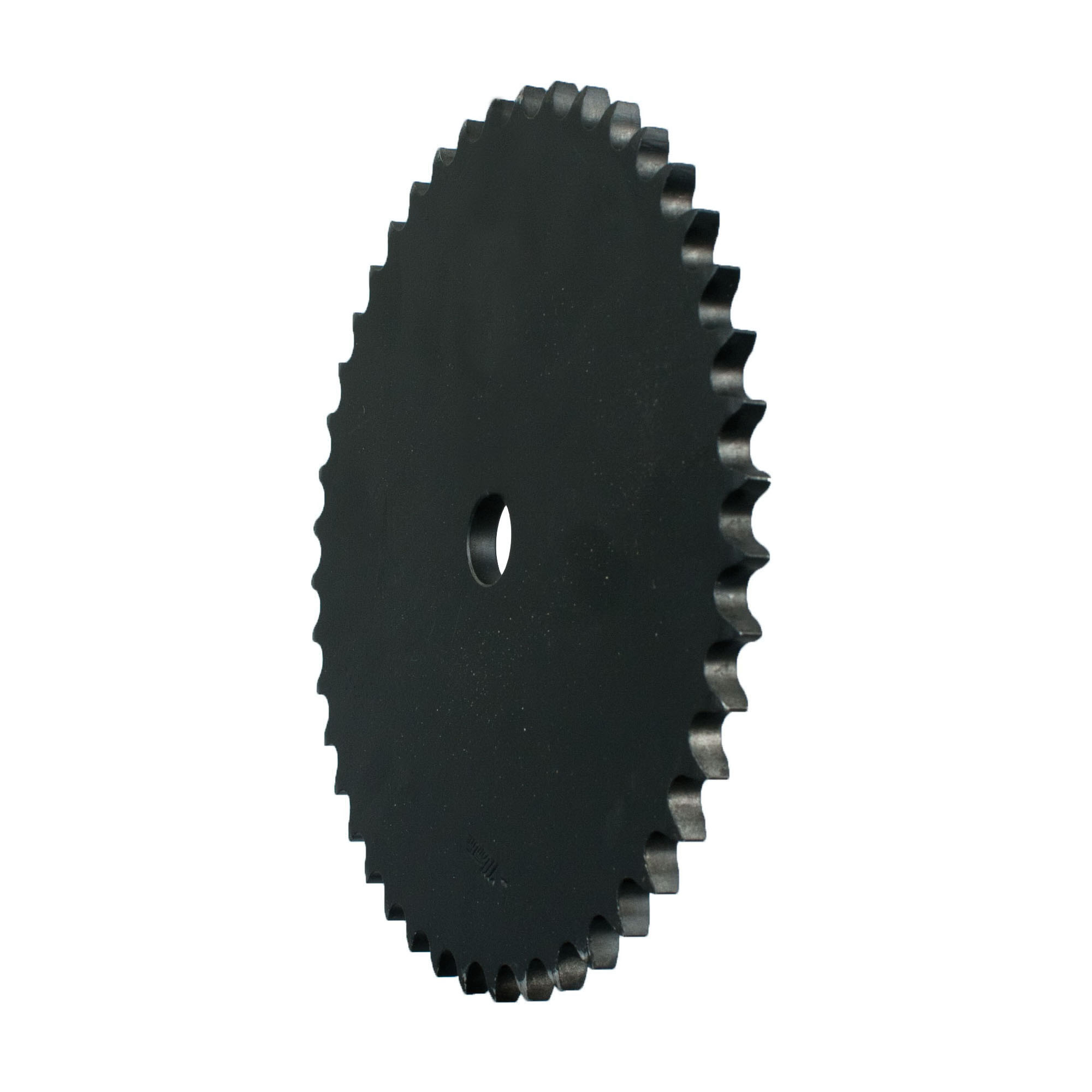

Martin 60-T DRIVE SPROCKETS FOR #41 CHAIN MAT 41-A-60
A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.
-
BrandMartin
-
UPC697950009636
-
Manufacturer Part Number41A60
-
CountryUSA|Canada
-
Pitch1/2 in
-
Pitch Diameter9.5537 in
-
MaterialSteel
-
Chain Size#41
-
TypeType A Single Strand Solid Reboreable
-
Number of Teeth60
-
Outside Diameter9.841 in
-
Length Through Bore0.227 in
-
Bore Diameter0.71875 to 9.011 in
- Precise machining and processes ensure consistent finish and high quality
-
UNSPSC31171901
-
Standards/ApprovalsANSI Specified|B29.1 - 1975
-
WarrantyLimited
-
Specification Sheet
