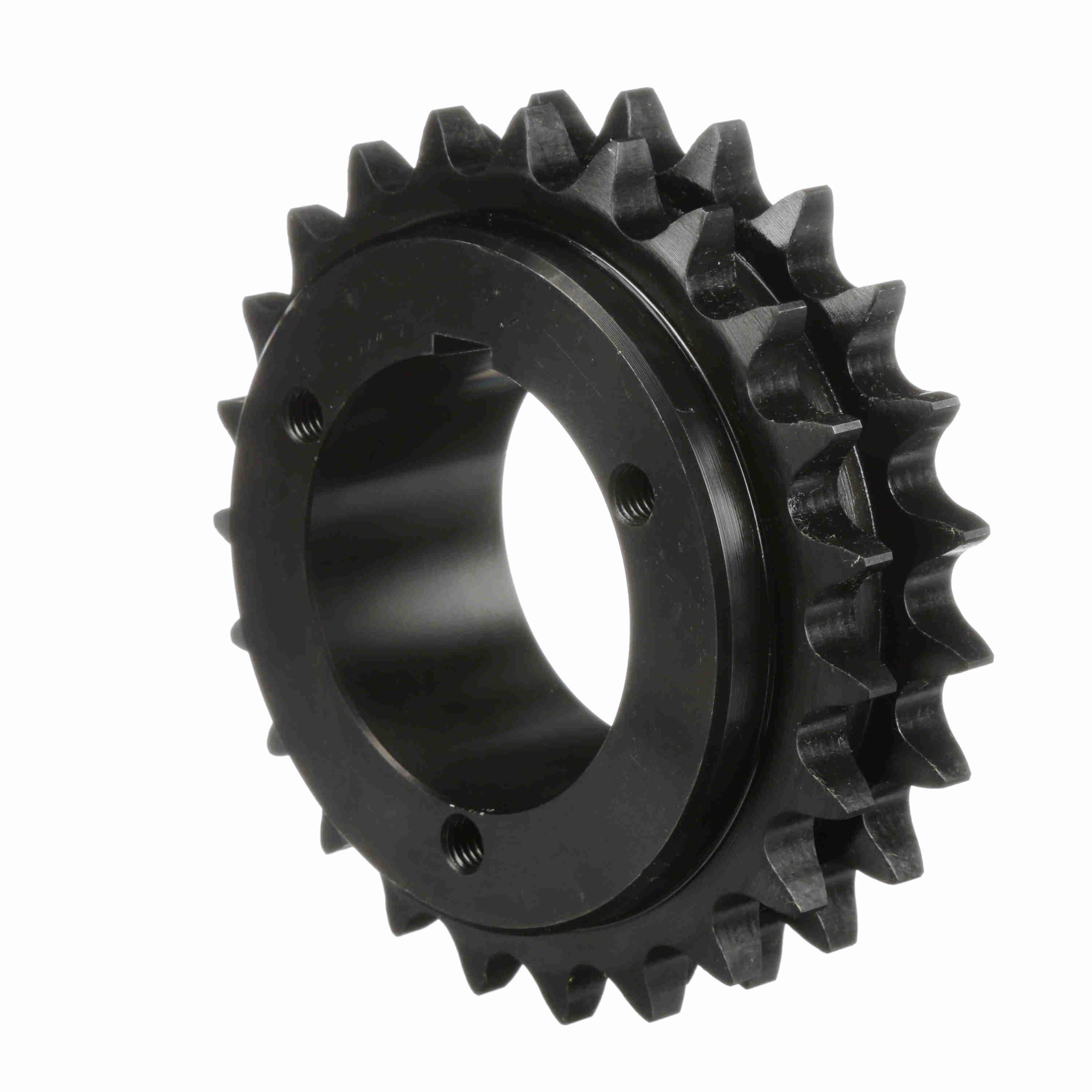

Browning® 1174689 Double Strand Roller Chain Sprocket With Hardened Teeth, 3/4 to 2-11/16 in Dia Bore, 5.907 in OD, 60 Chain, 23 Teeth, 3/4 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289199419
-
Manufacturer Part Number1174689
-
CountryUSA
-
Bushing TypeType Q1 Split Taper
-
Pitch3/4 in
-
Pitch Diameter5.508 in
-
MaterialSteel
-
Chain Size60
-
TypeDouble Strand
-
Hub Diameter4-1/8 in
-
Number of Teeth23
-
Outside Diameter5.907 in
-
Length Through Bore2-1/2 in
-
Bore Diameter3/4 to 2-11/16 in
- External key have higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel to improved clamping
- Solid flange true concentricity, easy installation
- Longer barrel have better support on the shaft
- For use with 3/4 in pitch ANSI roller chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain
-
Alternative Part NumberD60Q23
-
UNSPSC31151603
-
Package DescriptionEACH
-
Warranty1 Year
-
