Browning 7/8"-ID 2525-STYLE TL BUSHINGS BRW 2525 X 7/8

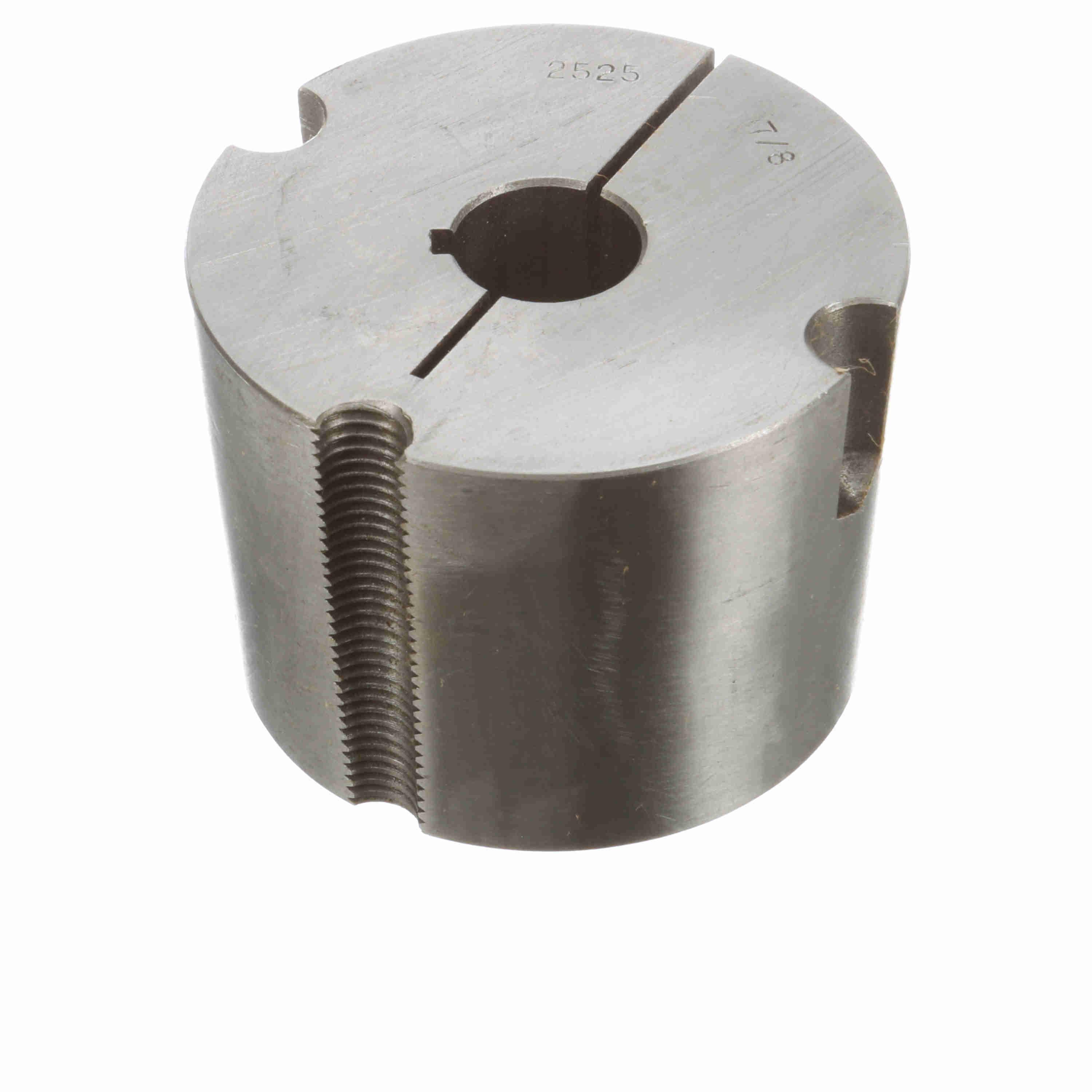

Browning® 3749801 Taper Lock Bushing, 7/8 in Dia Bore, 3-3/8 in Dia Barrel, 2-1/2 in OAL, Steel
-
BrandBrowning®
-
UPC662289617180
-
Manufacturer Part Number3749801
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating11300 in-lb
-
Screw Size1/2 x 1 in
-
Number of Bolt Holes2
-
Barrel Diameter3-3/8 in
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter3-1/4 in
-
Bore Diameter7/8 in
-
Overall Length2-1/2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number2525X7/8
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
