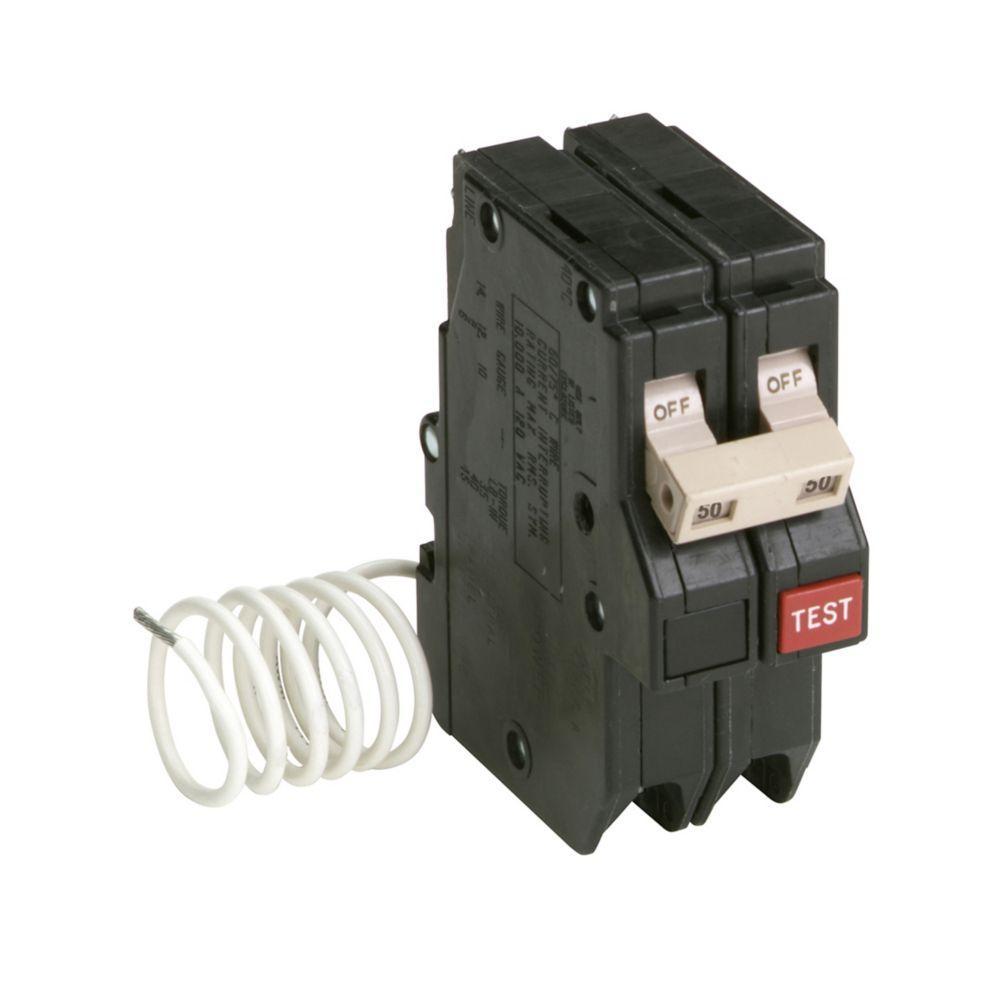

EATON CH250GF Type CH Ground Fault Circuit Breaker, 120/240 V AC, 50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design. Type CH circuit breakers trip to the off position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off the thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113912899
-
Manufacturer Part NumberCH250GF
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType CH
-
Actuator TypeHandle
-
Voltage Rating120/240 V AC
-
Amperage Rating50 A
-
Wire Size14 to 6 AWG
-
Number of Poles2
-
Dimensions6 in L x 2 in W x 2 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 3R
- 2-pole type CHGFIs are designed for use in 3-wire, 120/240 VAC circuits, 120 VAC multiwire circuits employing common, neutral and 2-wire, 240 VAC circuits obtained from a 120/240 VAC source
- 14 to 6 AWG copper/aluminum wire
- For type CH load centers
-
Alternative Part Number7358939
-
UNSPSC39121603
-
IDEA Index ID7358939
-
Standards/ApprovalsUL 67|UL 489|UL File No. E8741
-
WarrantyLimited Lifetime
-
Catalog
-
Specification Sheet
-
Owners/User Manual
