Browning 7/8"-ID 1610-STYLE TL BUSHINGS BRW 1610 X 7/8

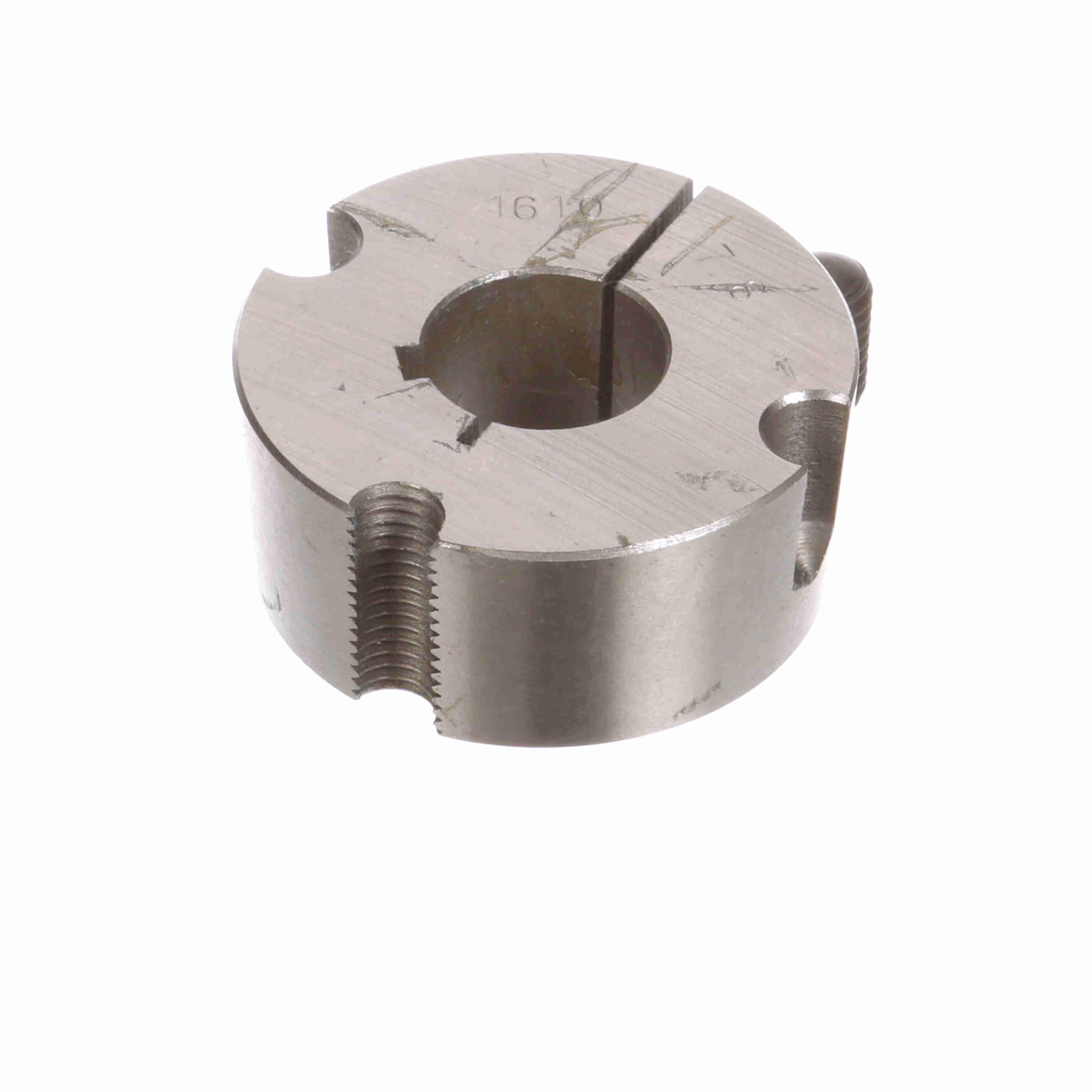

Browning® 3748894 Taper Lock Bushing, 7/8 in Dia Bore, 2-1/4 in Dia Barrel, 1 in OAL, Steel
-
BrandBrowning®
-
UPC662289612437
-
Manufacturer Part Number3748894
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating4300 in-lb
-
Screw Size3/8 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter2-1/4 in
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter2-1/8 in
-
Bore Diameter7/8 in
-
Overall Length1 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number1610X7/8
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
Instruction/Installation Manual
-
Catalog
