Browning 1-GRV 3-V-BELT H-BUSH SHEAVES BRW 1-H-3-V-33

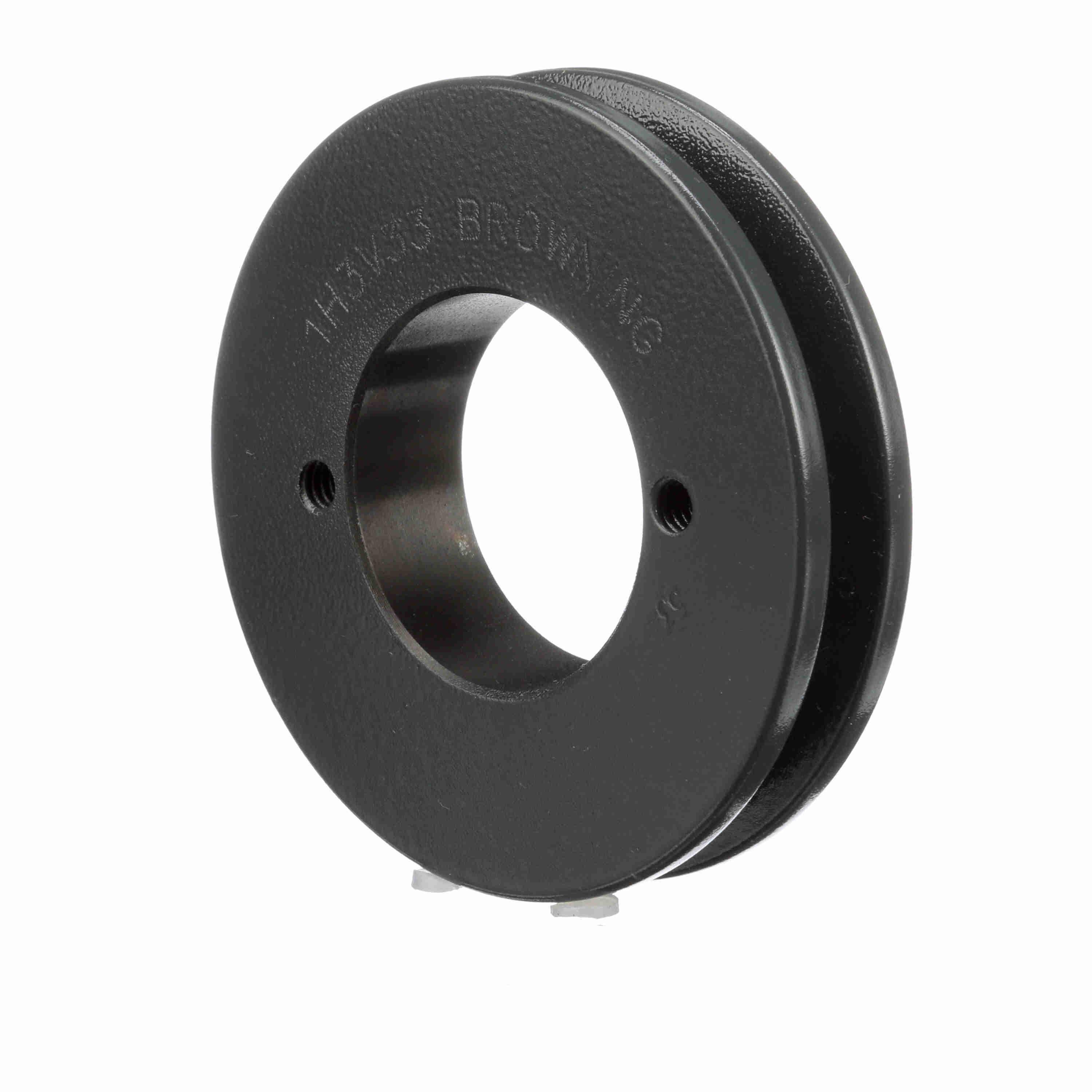

Browning® Gripbelt® 1059351 Type H1 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 3.35 in OD, 3.3 in Dia Pitch, 11/16 in W Face
-
BrandBrowning®
-
UPC662289238897
-
Manufacturer Part Number1059351
-
CountryUSA
-
Face Width11/16 in
-
Bushing TypeH
-
Pitch Diameter3.3 in
-
MaterialCast Iron
-
TypeType H1
-
Hub Diameter2-1/2 in
-
Hub Projection15/32 in
-
Outside Diameter3.35 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length1-5/16 in
-
Suitable For Use With3V-Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Double split barrel assures true concentricity
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1H3V33
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
