Browning 1-GRV 3/4"-ID A OR B-BELT SHEAVES BRW BK-26 X 3/4

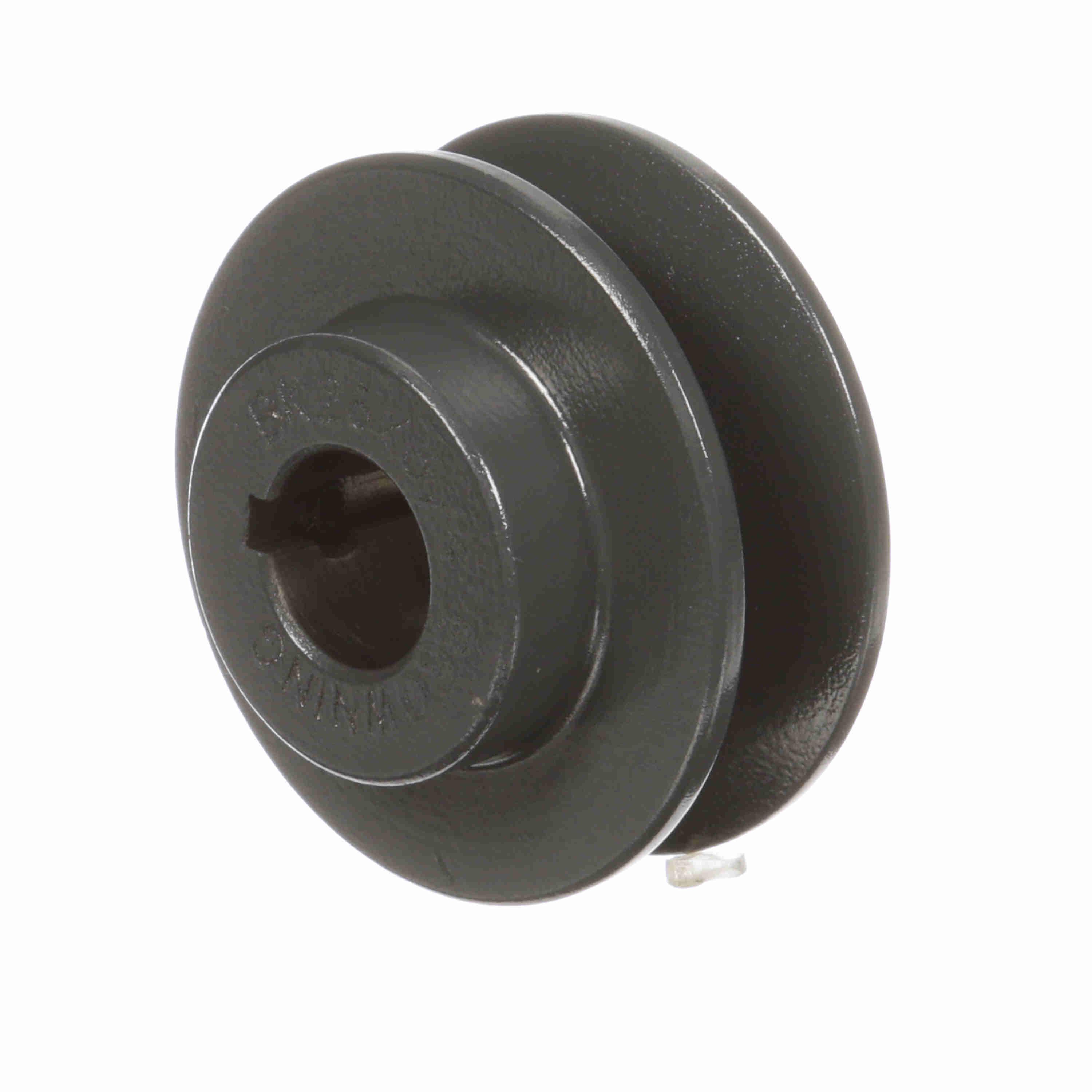

Browning® Classical Gripbelt® 1027887 BK Series Type 1 Single Groove Sheave, Finished Bore, 3/4 in Dia Bore, 2.6 in OD, 2.1 in (A)/2.6 in (B) Dia Pitch, 13/16 in W Face
-
BrandBrowning®
-
UPC662289315253
-
Manufacturer Part Number1027887
-
CountryUSA
-
Face Width13/16 in
-
Pitch Diameter2.1 in (A)/2.6 in (B)
-
MaterialCast Iron
-
TypeType 1
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter2.6 in
-
Bore Diameter3/4 in
-
Bore TypeFinished
-
Overall Length1-7/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part NumberBK26X3/4
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
