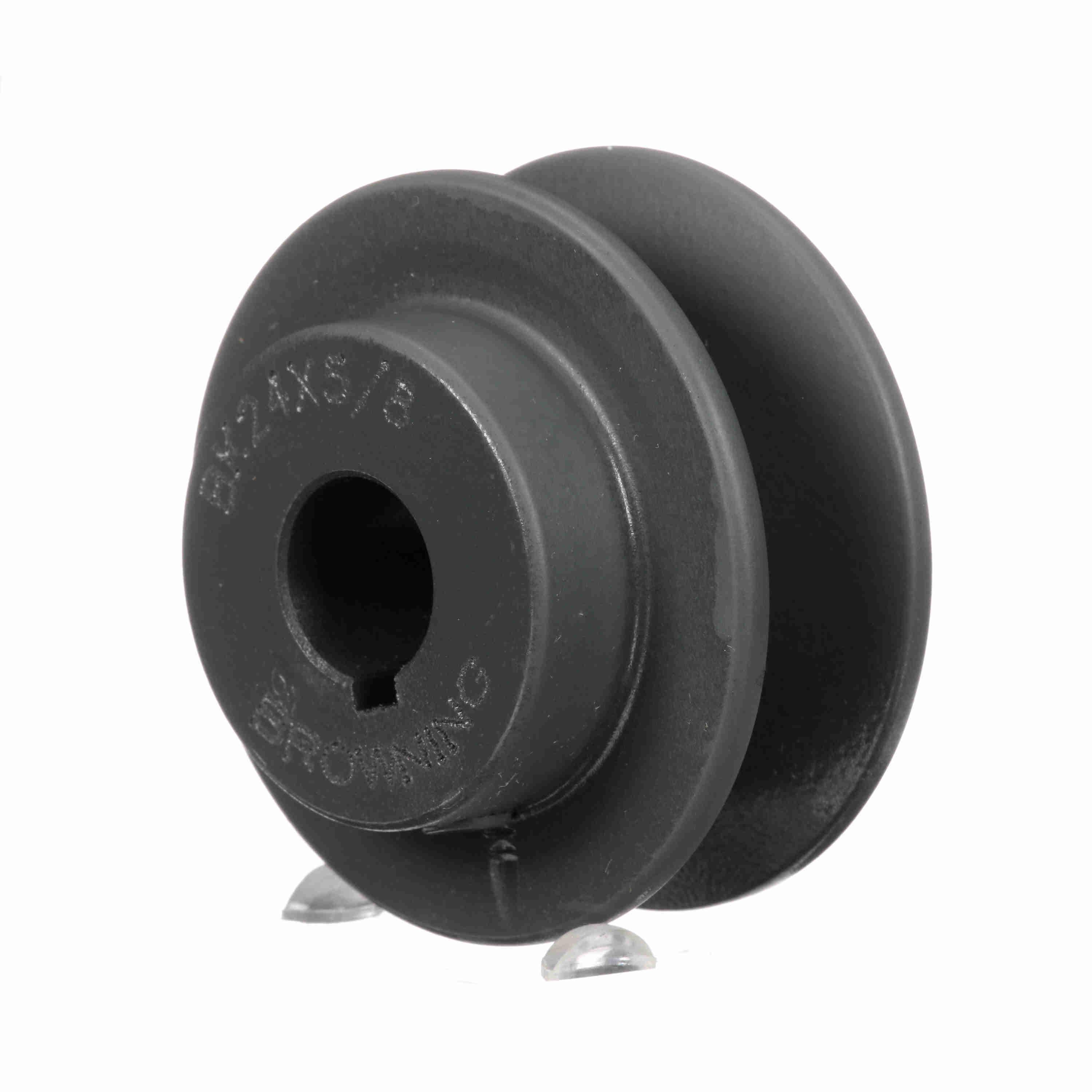

Browning® Classical Gripbelt® 1027804 BK Series Type 1 Single Groove Sheave, Finished Bore, 5/8 in Dia Bore, 2.4 in OD, 1.9 in (A)/2.4 in (B) Dia Pitch, 13/16 in W Face
Browning® Classical Gripbelt® 1027804 BK Series Type 1 Single Groove Sheave, Finished Bore, 5/8 in Dia Bore, 2.4 in OD, 1.9 in (A)/2.4 in (B) Dia Pitch, 13/16 in W Face
-
BrandBrowning®
-
UPC662289247578
-
Manufacturer Part Number1027804
-
CountryUSA
-
Face Width13/16 in
-
Pitch Diameter1.9 in (A)/2.4 in (B)
-
MaterialCast Iron
-
TypeType 1
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter2.4 in
-
Bore Diameter5/8 in
-
Bore TypeFinished
-
Overall Length1-7/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Precision balanced to provide smooth, vibration free performance
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
- Cooler running means longer life
- Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
- Notched belts provide higher horsepower than wrapped belts
-
Alternative Part NumberBK24X5/8
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
