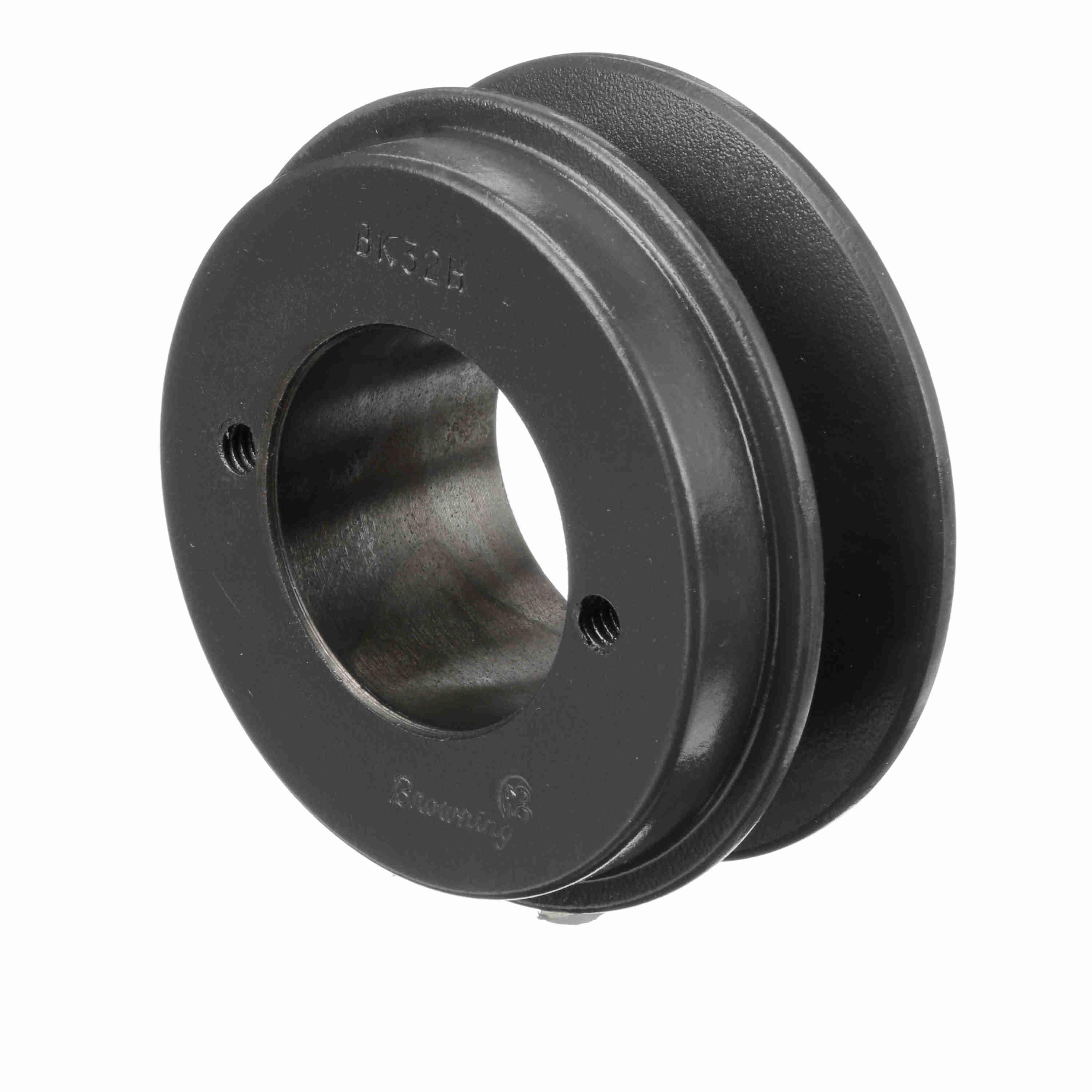

Browning® Classical Gripbelt® 1026392 AK Series Type 2 Single Groove Sheave, Finished Bore, 1 in Dia Bore, 3-3/4 in OD, 3.7 in (A)/3.16 in (3L) Dia Pitch, 3/4 in W Face
Browning® Classical Gripbelt® 1026392 AK Series Type 2 Single Groove Sheave, Finished Bore, 1 in Dia Bore, 3-3/4 in OD, 3.7 in (A)/3.16 in (3L) Dia Pitch, 3/4 in W Face
-
BrandBrowning®
-
UPC662289315017
-
Manufacturer Part Number1026392
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter3.7 in (A)/3.16 in (3L)
-
MaterialCast Iron
-
TypeType 2
-
SeriesAK Series
-
Hub Projection15/32 in
-
Outside Diameter3-3/4 in
-
Bore Diameter1 in
-
Bore TypeFinished
-
Overall Length1-7/32 in
-
Suitable For Use With4L/A and 3L Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
- Cooler running means longer life
- Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
- Notched belts provide higher horsepower than wrapped belts
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100783155 |
| Motion Industries | 00733623 |
-
Alternative Part NumberAK39X1
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
