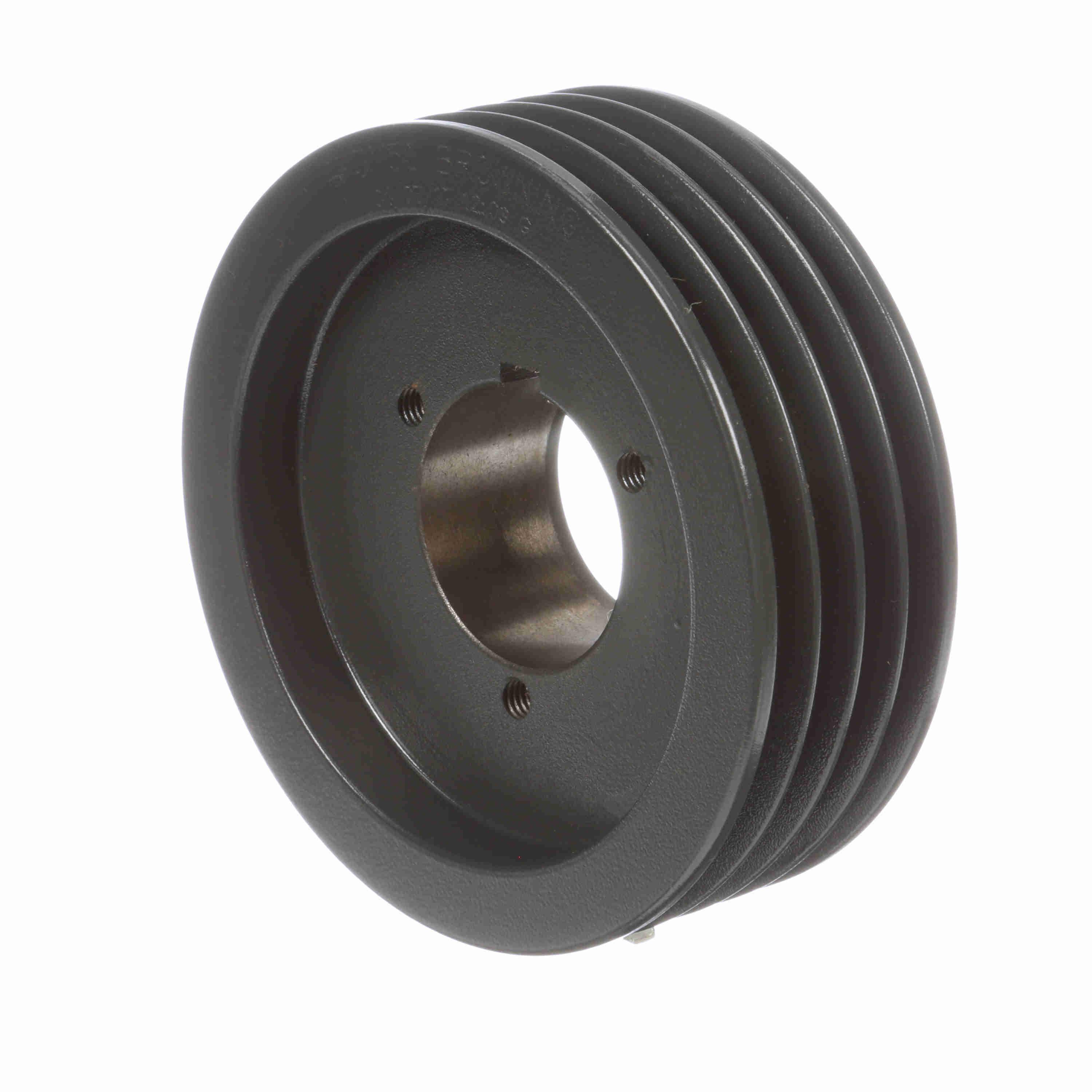

Browning® 1060417 Type 13 Solid Multiple Sheave, 1/2 to 1-3/4 in Split Taper Bore, 5.6 in OD, 4 Grooves, 5.55 in Dia Pitch, 1-29/32 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289149780
-
Manufacturer Part Number1060417
-
CountryUSA
-
Face Width1-29/32 in
-
Bushing TypeP1
-
Pitch Diameter5.55 in
-
MaterialCast Iron
-
TypeType 13 Solid
-
Number of Grooves4
-
Outside Diameter5.6 in
-
Bore Diameter1/2 to 1-3/4 in
-
Bore TypeSplit Taper
-
Overall Length2-3/16 in
-
Suitable For Use WithGripBelt® 3V Cross Section V-Belt
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number4P3V56
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
