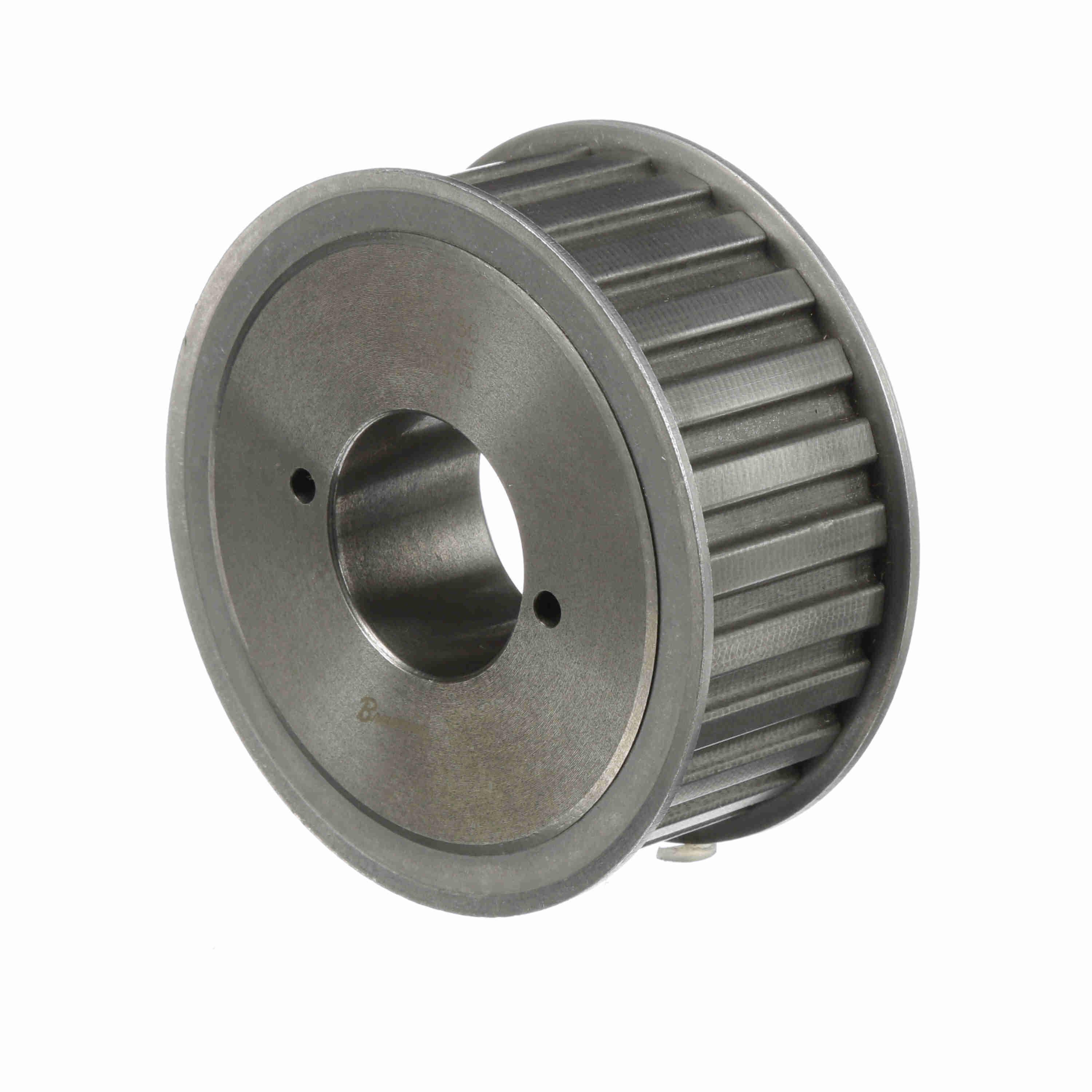

Browning 26-T H-PITCH H-BUSH T/BELT SHEAVES BRW 26-H-H-150
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289314546
-
Manufacturer Part Number1057132
-
CountryUSA
-
Face Width1-3/4 in
-
Bushing TypeH
-
Pitch1/2 in
-
Pitch Diameter4.138 in
-
Flange Diameter4-3/8 in
-
TypeType 16
-
Hub Diameter2-1/2 in
-
Hub Projection1/32 in
-
Number of Grooves26
-
Outside Diameter4.084 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length1-15/16 in
-
Suitable For Use With1-1/2 in W Type H150 Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number26HH150
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
