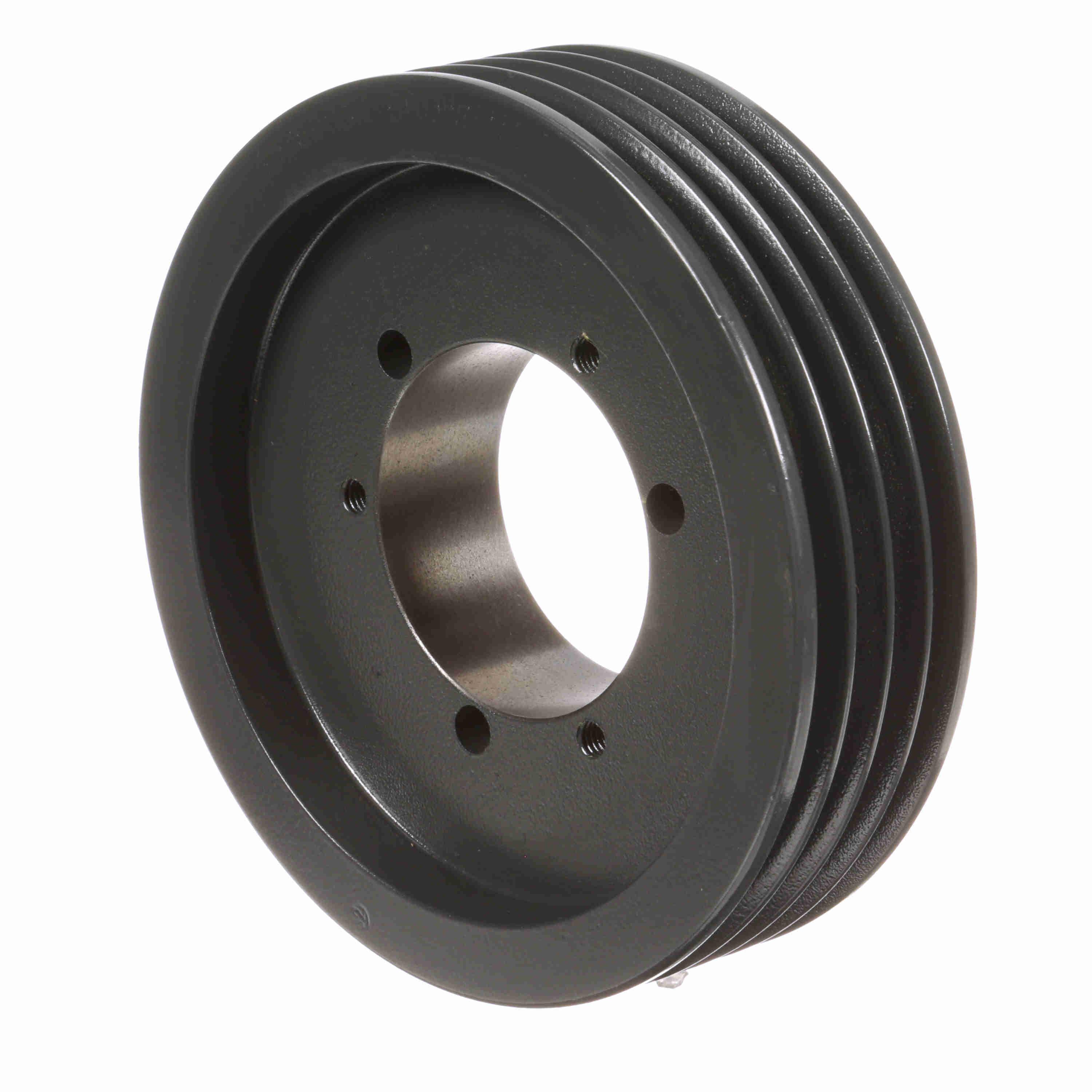

Browning® 1065002 Type D Solid Multiple Sheave, 1/2 to 2-5/8 in QD® Bore, 6.9 in OD, 4 Grooves, 6.85 in Dia Pitch, 1-29/32 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289344017
-
Manufacturer Part Number1065002
-
CountryUSA
-
Face Width1-29/32 in
-
Bushing TypeSK
-
Pitch Diameter6.85 in
-
MaterialCast Iron
-
TypeType D Solid
-
Number of Grooves4
-
Outside Diameter6.9 in
-
Bore Diameter1/2 to 2-5/8 in
-
Bore TypeQD®
-
Suitable For Use WithGripBelt® 3V Cross Section V-Belt
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Wrapped FHP Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number43V690SK
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
