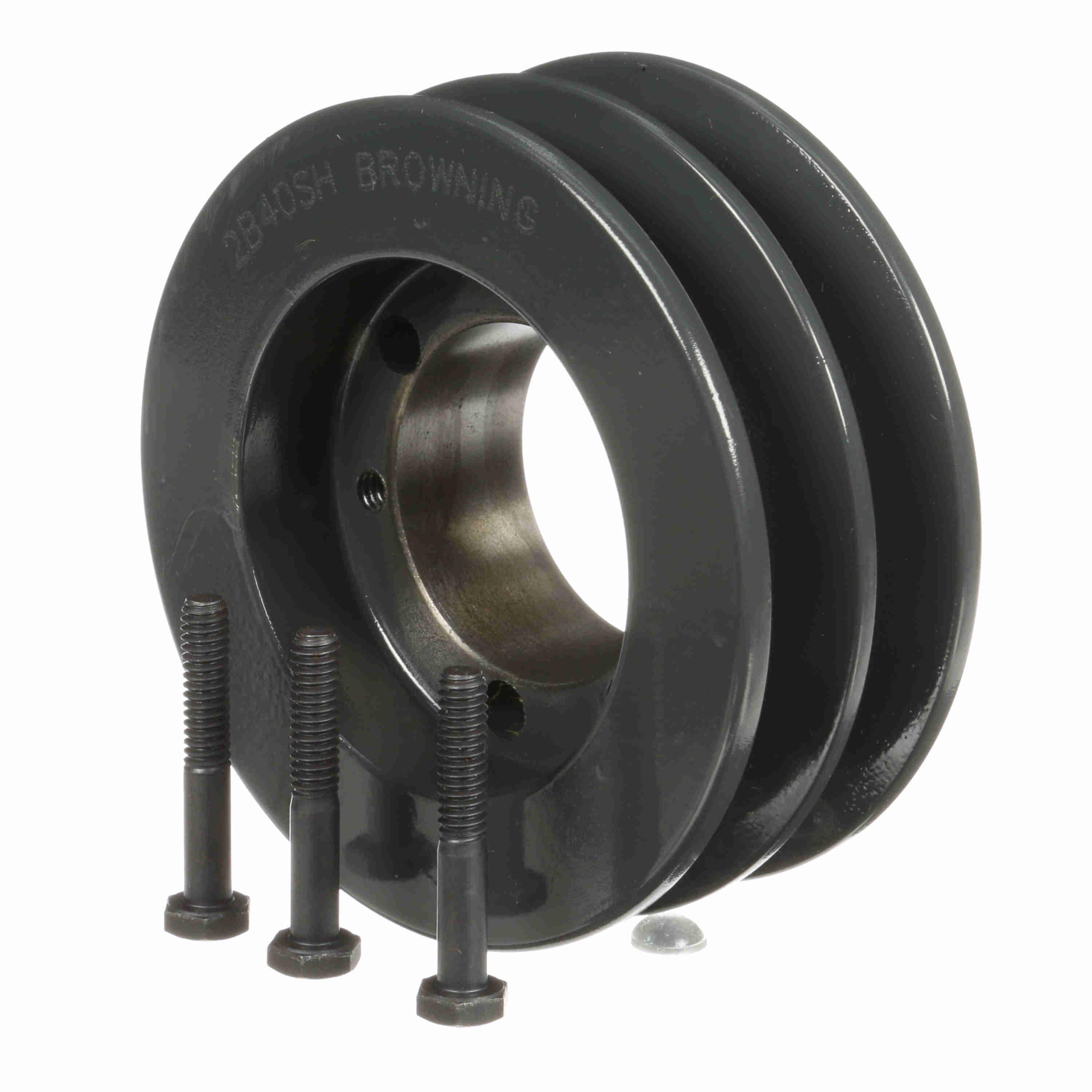

Browning® 1004167 Type D1 Multiple Sheave, 1/2 to 1-5/8 in QD® Bore, 4.35 in OD, 2 Grooves, 3.8 in (A)/4.3 in (B) Dia Pitch, 1-3/4 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289382767
-
Manufacturer Part Number1004167
-
CountryUSA
-
Face Width1-3/4 in
-
Bushing TypeSH
-
Pitch Diameter3.8 in (A)/4.3 in (B)
-
MaterialCast Iron
-
TypeType D1
-
Hub Projection0.0125 in
-
Number of Grooves2
-
Outside Diameter4.35 in
-
Bore Diameter1/2 to 1-5/8 in
-
Bore TypeQD®
-
Overall Length1.7625 in
-
Suitable For Use WithGripbelt® A and B Cross Section Belts
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number2B40SH
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
