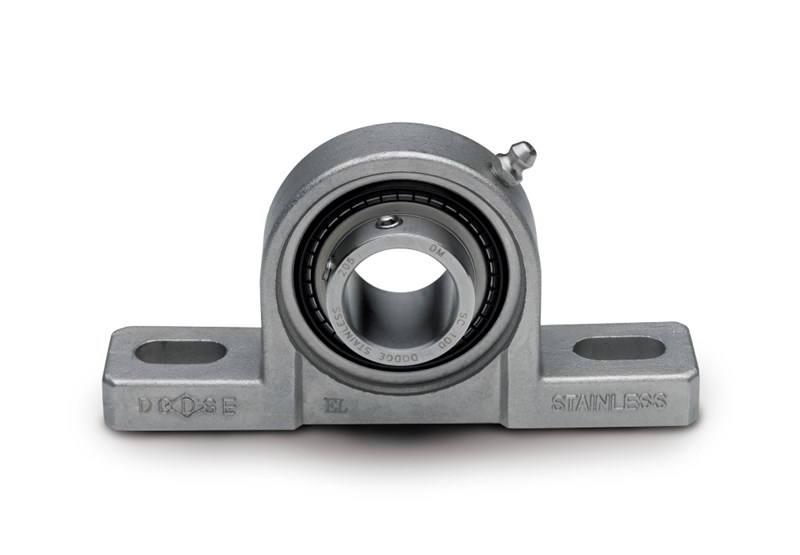

Dodge® E-Z-Kleen® 056798 207 Normal Duty Pillow Block Ball Bearing, 1-1/4 in Dia Bore, 4.68 to 5.44 in L Bolt Center-to-Center, 1.88 in Base to Bore Centerline, 6-1/2 in OAL x 3.63 in OAH
Dodge® E-Z-Kleen® mounted ball bearings are ideal for washdown applications. The corrosion-resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant.
-
BrandDodge®
-
UPC782475243747
-
Manufacturer Part Number056798
-
CountryUSA
-
Load Capacity5759 lb Dynamic/3065 lb Static
-
Locking Device65 deg Set Screw
-
FinishUncoated
-
MaterialStainless Steel
-
Maximum Speed9500 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
Series207
-
Base Width1.38 in
-
Base to Bore Centerline1.88 in
-
Bolt Center-to-Center Length4.68 to 5.44 in
-
Bore Diameter1-1/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height3.63 in
-
Overall Length6-1/2 in
-
Overall Width1.71 in
- 65 deg setscrew locking system
- Precision hardened and honed inner and outer rings
- Grade 10 balls
- Wide inner ring design
- Housings feature a solid base, with no cavities or fillings to trap contaminants
- Mechanically retained QuadGuard™ triple lip seal features a rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element, allowing balls to be constantly in contact with grease and retain grease during high pressure washdown
- H1 registered food grade lubricant
- Standard insert with flingers
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101942659 |
| Motion Industries | 02339039 |
-
Alternative Part NumberP2B-SCEZ-104-SH
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsFDA/USDA Compliant|UL Listed
-
WarrantyLimited
-
