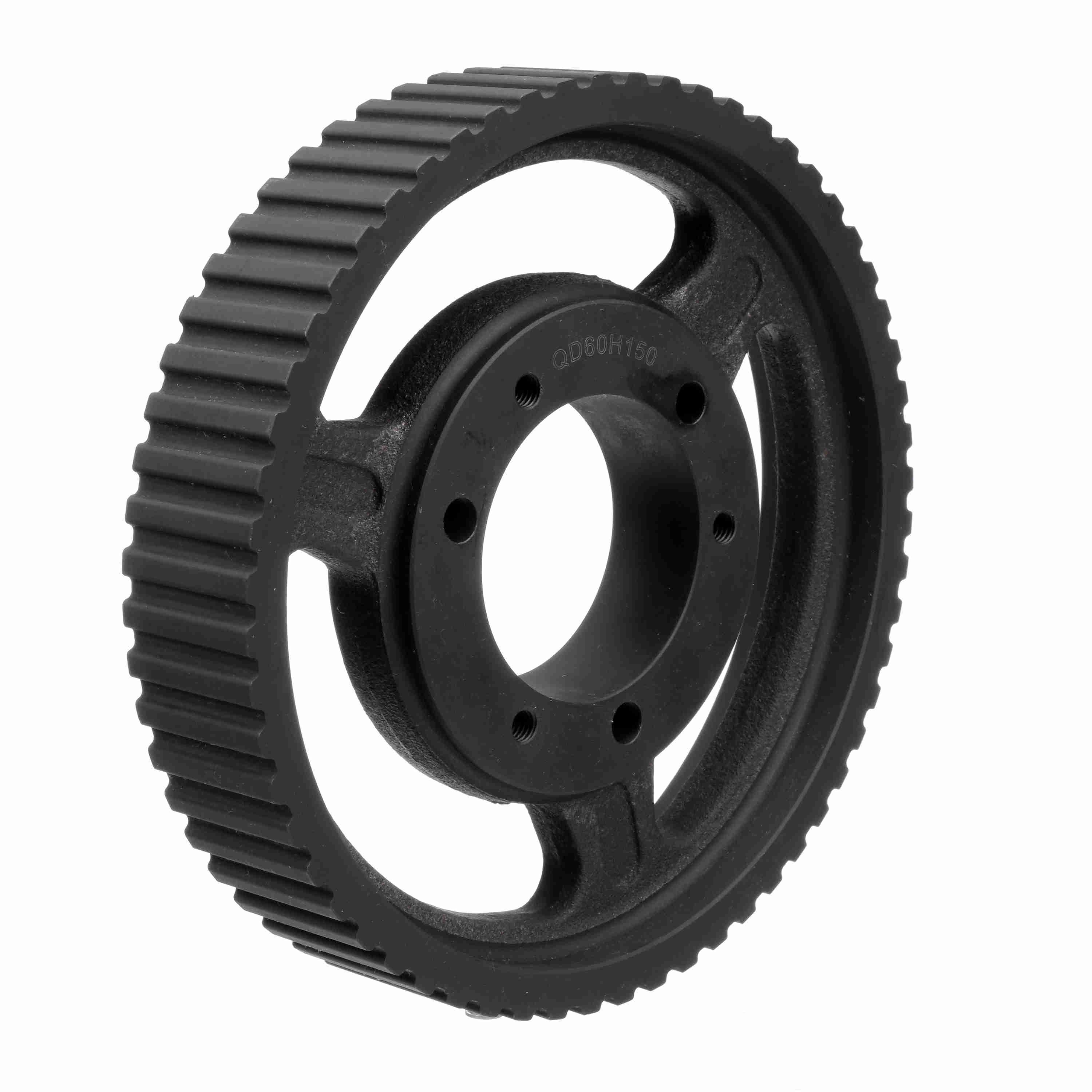

Browning® Gearbelt® 3514023 Type D Arm Synchronous Timing Pulley, 1/2 to 2-15/16 in QD® Bore, 9.495 in OD, 60 Grooves, 9.549 in Dia Pitch, 1-13/16 in W Face
Browning® Gearbelt® 3514023 Type D Arm Synchronous Timing Pulley, 1/2 to 2-15/16 in QD® Bore, 9.495 in OD, 60 Grooves, 9.549 in Dia Pitch, 1-13/16 in W Face
-
BrandBrowning®
-
UPC662289353156
-
Manufacturer Part Number3514023
-
CountryUSA
-
Face Width1-13/16 in
-
Bushing TypeSF
-
Pitch1/2 in
-
Pitch Diameter9.549 in
-
MaterialCast Iron
-
TypeType D Arm
-
Number of Grooves60
-
Outside Diameter9.495 in
-
Bore Diameter1/2 to 2-15/16 in
-
Bore TypeQD®
-
Suitable For Use With1-1/2 in W Type H150 Belt
- Constant speed no slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
- Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Wide belt speed range
-
Alternative Part Number60H150SF
-
UNSPSC26111807
-
Package Description1/PK
-
Warranty1 Year
-
