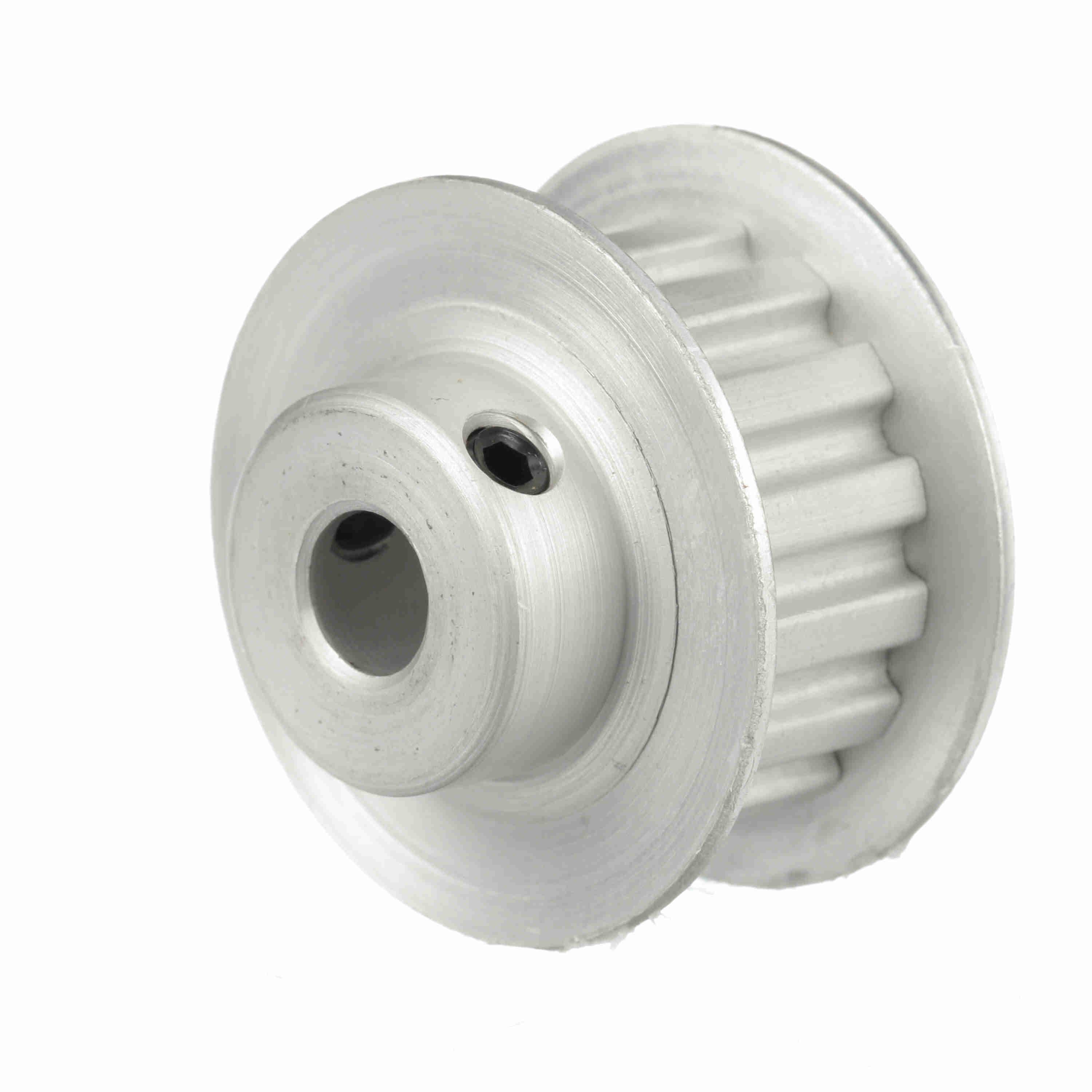

Browning® Gearbelt® 1054873 Type 2 Synchronous Timing Pulley With Flange, 1/4 to 5/16 in Bore, 0.935 in OD, 15 Grooves, 0.955 in Dia Pitch, 9/16 in W Face
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289112050
-
Manufacturer Part Number1054873
-
CountryUSA
-
Face Width9/16 in
-
Bushing TypeMPB
-
Pitch1/5 in
-
Pitch Diameter0.955 in
-
MaterialAluminum
-
Flange Diameter1-3/16 in
-
TypeType 2
-
Hub Diameter5/8 in
-
Hub Projection1/4 in
-
Number of Grooves15
-
Outside Diameter0.935 in
-
Bore Diameter1/4 to 5/16 in
-
Overall Length13/16 in
-
Suitable For Use With3/8 in W XL Type Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry
- Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number15XLB037
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
