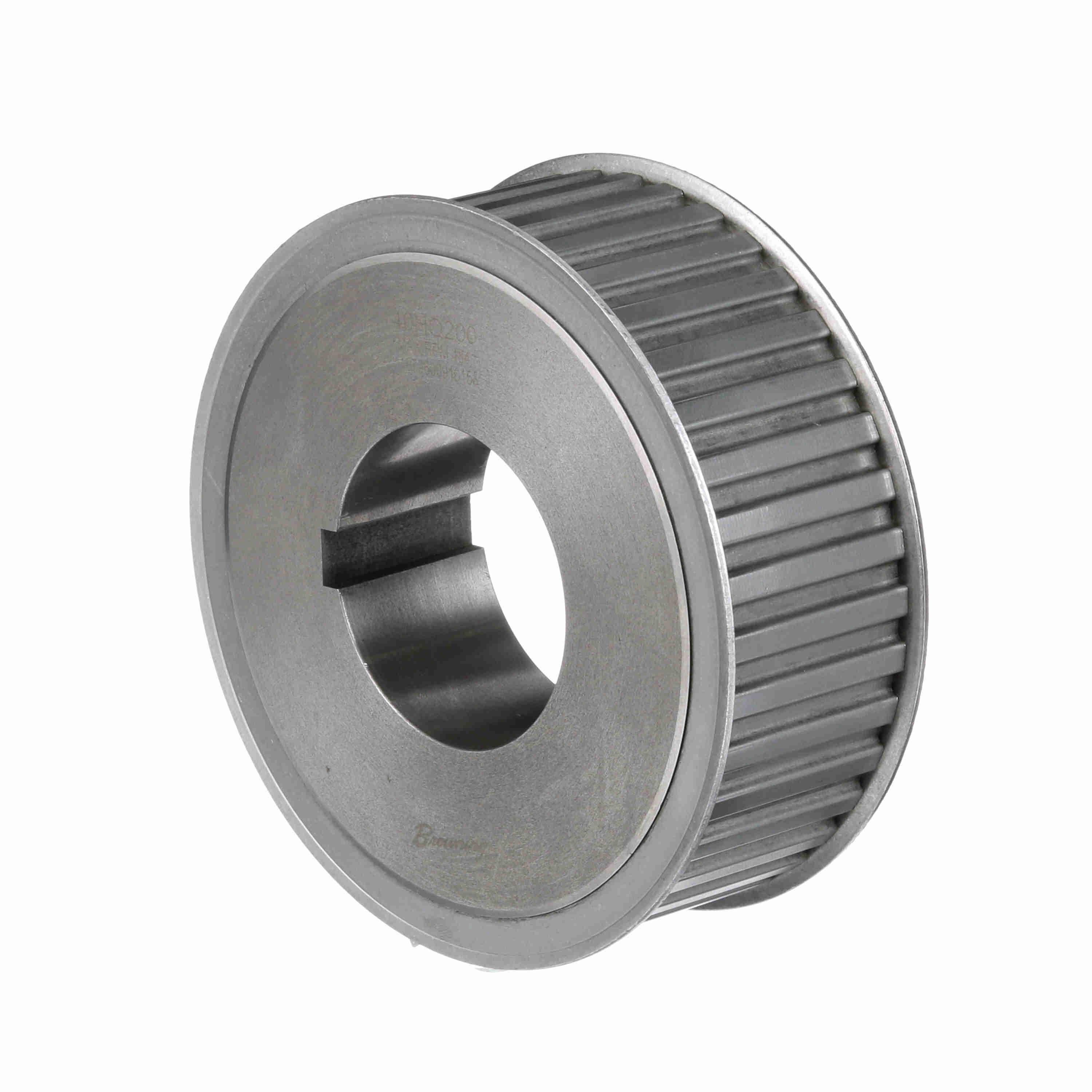

Browning® Gearbelt® 1057371 Type 11 Synchronous Flanged Pulley, 3/4 to 2-11/16 in Split Taper Bore, 6.312 in OD, 40 Grooves, 6.366 in Dia Pitch, 2.281 in W Face
Browning® Gearbelt® 1057371 Type 11 Synchronous Flanged Pulley, 3/4 to 2-11/16 in Split Taper Bore, 6.312 in OD, 40 Grooves, 6.366 in Dia Pitch, 2.281 in W Face
-
BrandBrowning®
-
UPC662289114153
-
Manufacturer Part Number1057371
-
CountryUSA
-
Face Width2.281 in
-
Bushing TypeQ1
-
Pitch1/2 in
-
Pitch Diameter6.366 in
-
Flange Diameter6-9/16 in
-
TypeType 11
-
Hub Diameter4-1/8 in
-
Hub Projection0.219 in
-
Number of Grooves40
-
Outside Diameter6.312 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-25/32 in
-
Suitable For Use With2 in W Type H200 Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
-
Alternative Part Number40HQ200
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
