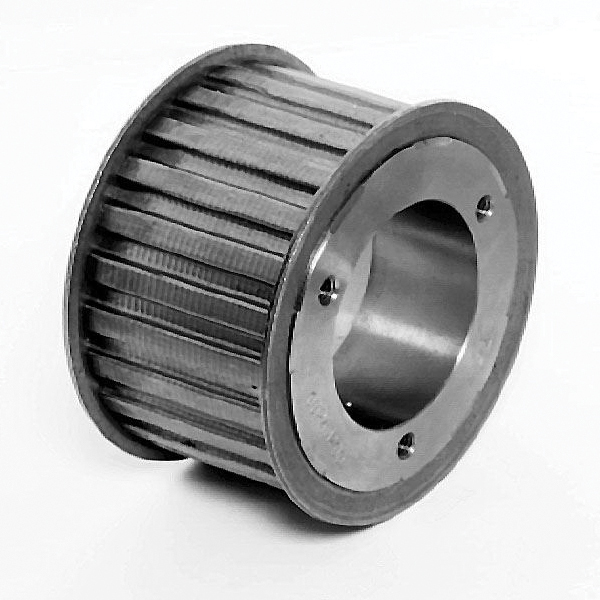

IDC Products 34-TOOTH 14-MM-PITCH T/BELT SHEAVE IDC P-34-14-M-40

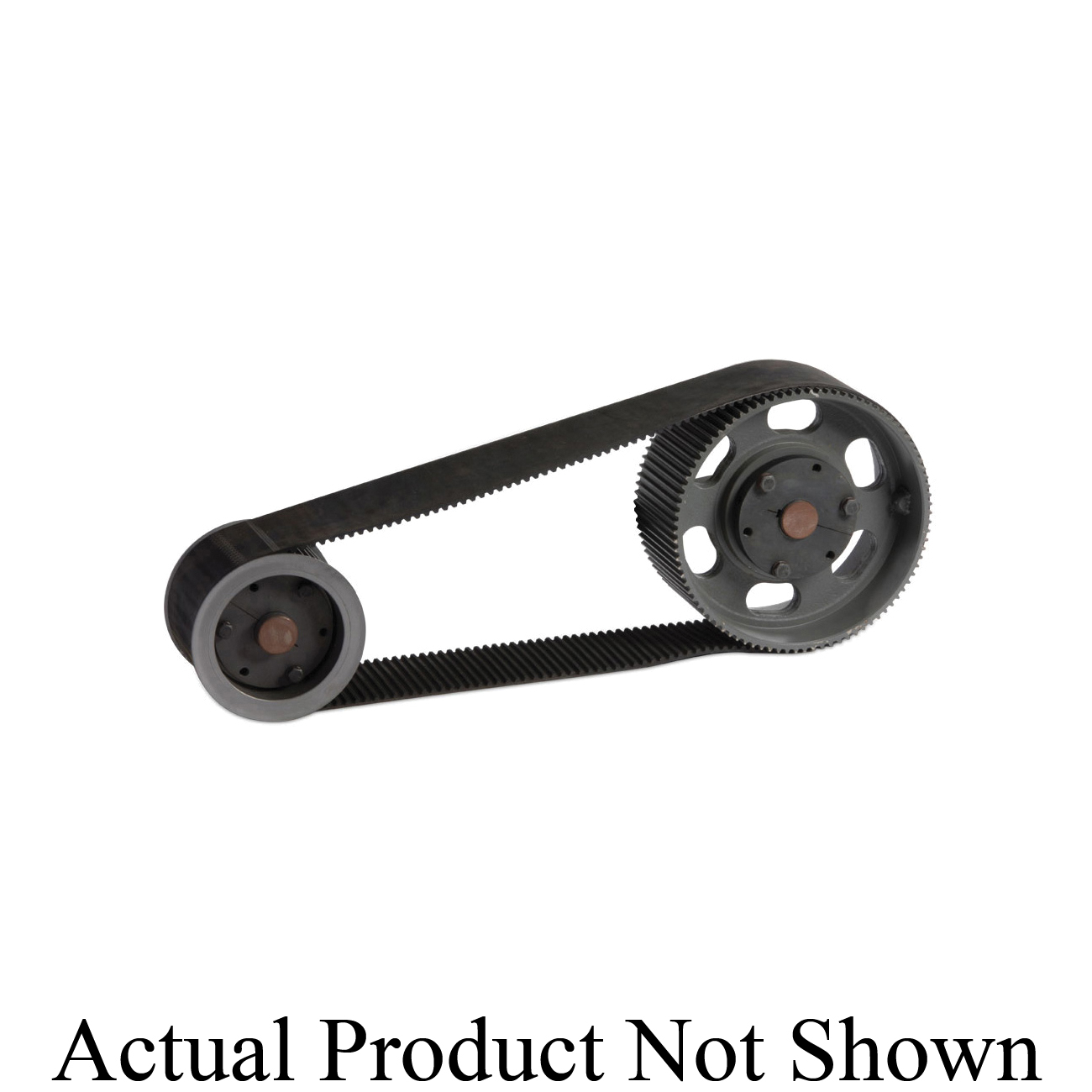

TB Wood'sĀ® Synchronous Plus synchronous drives offer the added flexibility of a dual sprocket design that features both metric and standard-tapped holes coupled with a high capacity Synchronous Plus belt. As a result, the Synchronous Plus drive offers a significantly higher horsepower rating at the standard industry price.
-
BrandTB Wood'sĀ®
-
UPC698672590174
-
Manufacturer Part NumberP3414M40
-
CountryUSA
-
Face Width2.13 in
-
Bushing TypeSK
-
Pitch14 mm
-
Pitch Diameter5.965 in
-
Flange Diameter6-1/2 in
-
TypeType DF Solid
-
Outside Diameter5.86 in
-
Bore TypeQDĀ®
-
Suitable For Use With40 mm W Type 14M Belt
-
MaterialCast Iron
-
Bore Diameter1/2 to 2-1/2 in
-
Overall Length2.40 in
- Delivers 50% more horsepower capacity than standard construction high torque drives
- Allows for use of smaller and lighter weight sprockets
- Provides a more economical solution than standard high torque
- Dual drilled many sprocket sizes are drilled for both inch and metric hardware
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 year
-
Standards/ApprovalsPROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Catalog
-
Instruction/Installation Manual
