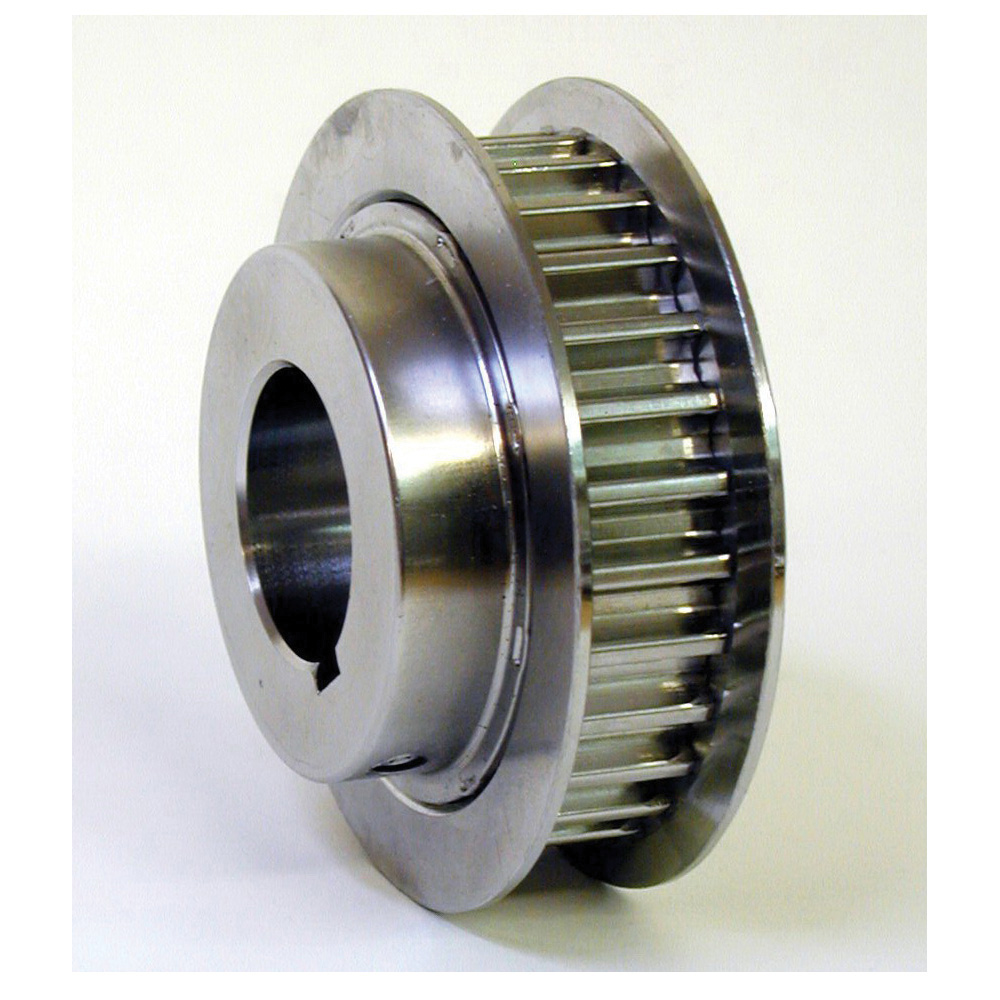

Gates® Power Transmission PowerGrip® GT®2 3MR-30S-15 Synchronous Sprocket, 1/4 to 9/16 in, 1.098 in OD, 30 Grooves, 1.128 in Dia Pitch, 0.742 in W Face
PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.
-
BrandGates® Power Transmission
-
UPC72053547115
-
Manufacturer Part Number3MR-30S-15
-
CountryUSA|Canada
-
Face Width0.742 in
-
Bushing TypeMPB
-
Pitch3 mm
-
Pitch Diameter1.128 in
-
FinishClear Anodize
-
MaterialAluminum
-
Flange Diameter1-1/4 in
-
Series7843
-
Hub Diameter0.776 in
-
Number of Grooves30
-
Outside Diameter1.098 in
-
Bore Diameter1/4 to 9/16 in
-
Overall Length1.057 in
-
Suitable For Use With15 mm W 2MR and 3MR PowerGrip® GT®2 Belts
- Precise sprocket design produces positive, press fit to shaft
- Smaller, narrower sprockets save shaft space
- Precision manufactured and static balanced to eliminate sprocket wobble
-
Alternative Part Number78436034
-
UNSPSC31171900
-
Package DescriptionEACH
-
Catalog
-
Specification Sheet
