Gates® Power Transmission Super HC® XP™ 5VXP1900 Heavy Duty Premium Notched V-Belt, 5VXP Section, 5/8 in W Top, 190 in L Outside, 35/64 in THK, EPDM
The flexibility of a notched belt, the power of aramid cords and the stability that's exclusive to Gates Super HC™ construction. Our Super HC XP™ Notched Premium belts are designed for applications where standard notched V-belts fail. They are tested to transmit an average of 50% more horsepower than our standard Super HC Molded Notch belts, which helps reduce the overall drive width, weight and cost.
-
BrandGates® Power Transmission
-
UPC770075637448
-
Manufacturer Part Number5VXP1900
-
CountryUSA|Canada
-
Temperature Range-60 to 250 deg F
-
Thickness35/64 in
-
MaterialEPDM
-
Top Width5/8 in
-
Reinforced MaterialFlex-Bonded Aramid
-
TypeHeavy Duty Premium Notched
-
Section Size5VXP
-
Series9688
-
Outside Length190 in

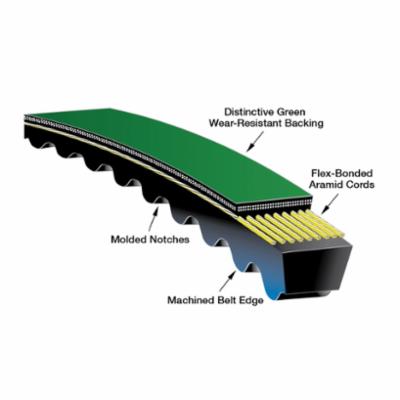

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
- Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
- Aramid tensile cords combine limited stretch with extraordinary strength and durability that is pound-for-pound stronger than steel
- Patented ethylene material construction provides -60 to 250 deg F temperature range to resist belt cracking
- Distinctive green backing provides protection and wear resistance
- Reduced drive width and cost
- Improved energy efficiency over smooth V-belts
-
Alternative Part Number96881900
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
