Browning 1-GRV A OR B-BELT P1-BUSH SHEAVES BRW 1-TB-80

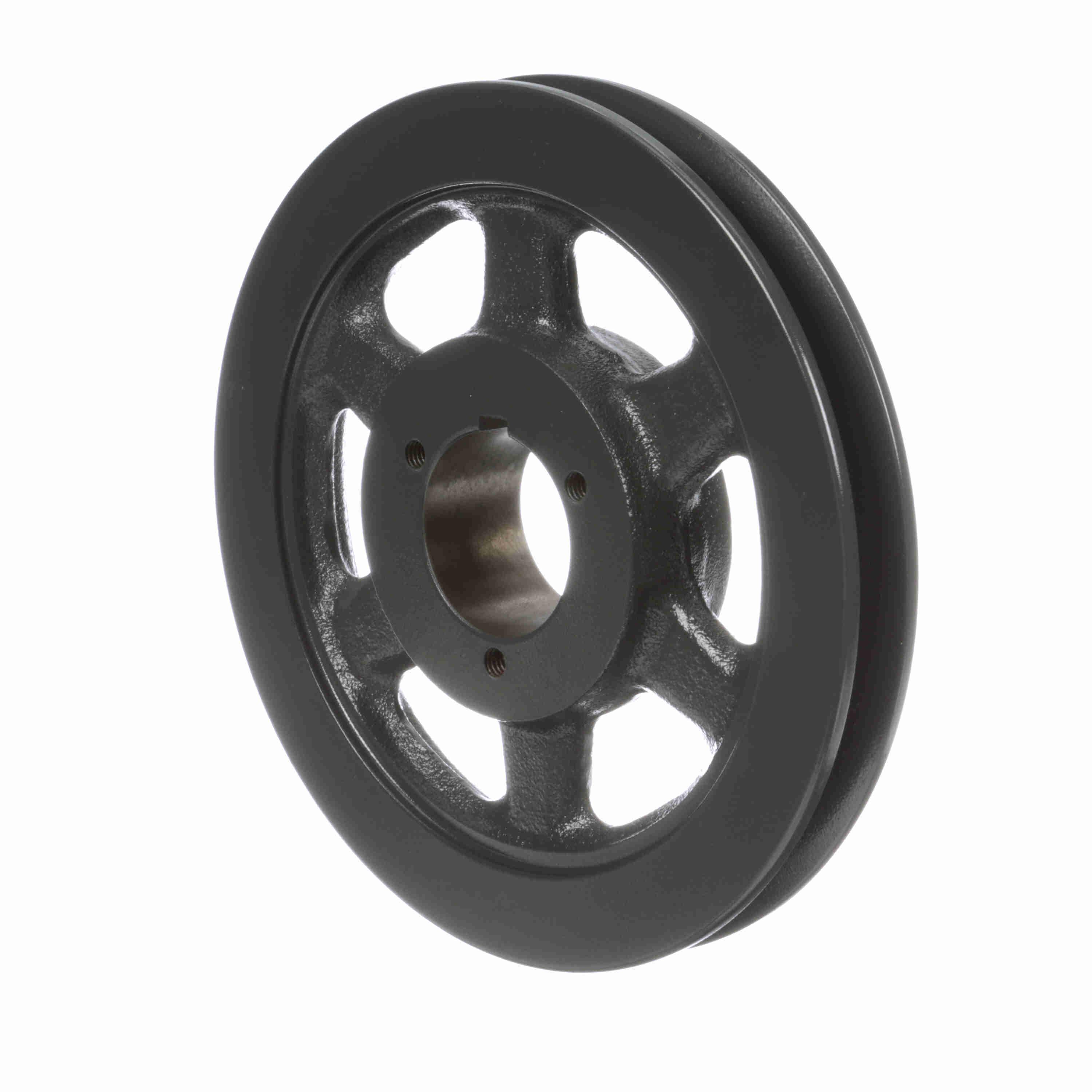

Browning® Classical Gripbelt® 1002385 TB Series Arm Type 16 Single Groove Sheave, Split Taper Bore, 1/2 to 1-3/4 in Dia Bore, 8.35 in OD, 7.8 in (A)/8.3 in (B) Dia Pitch, 1 in W Face
-
BrandBrowning®
-
UPC662289222070
-
Manufacturer Part Number1002385
-
CountryUSA
-
Face Width1 in
-
Bushing TypeP1
-
Pitch Diameter7.8 in (A)/8.3 in (B)
-
MaterialCast Iron
-
TypeArm Type 16
-
SeriesTB Series
-
Hub Diameter3 in
-
Hub Projection25/32 in
-
Outside Diameter8.35 in
-
Bore Diameter1/2 to 1-3/4 in
-
Bore TypeSplit Taper
-
Overall Length2-9/64 in
-
Suitable For Use WithAB Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Double split barrel assures true concentricity
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1TB80
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
