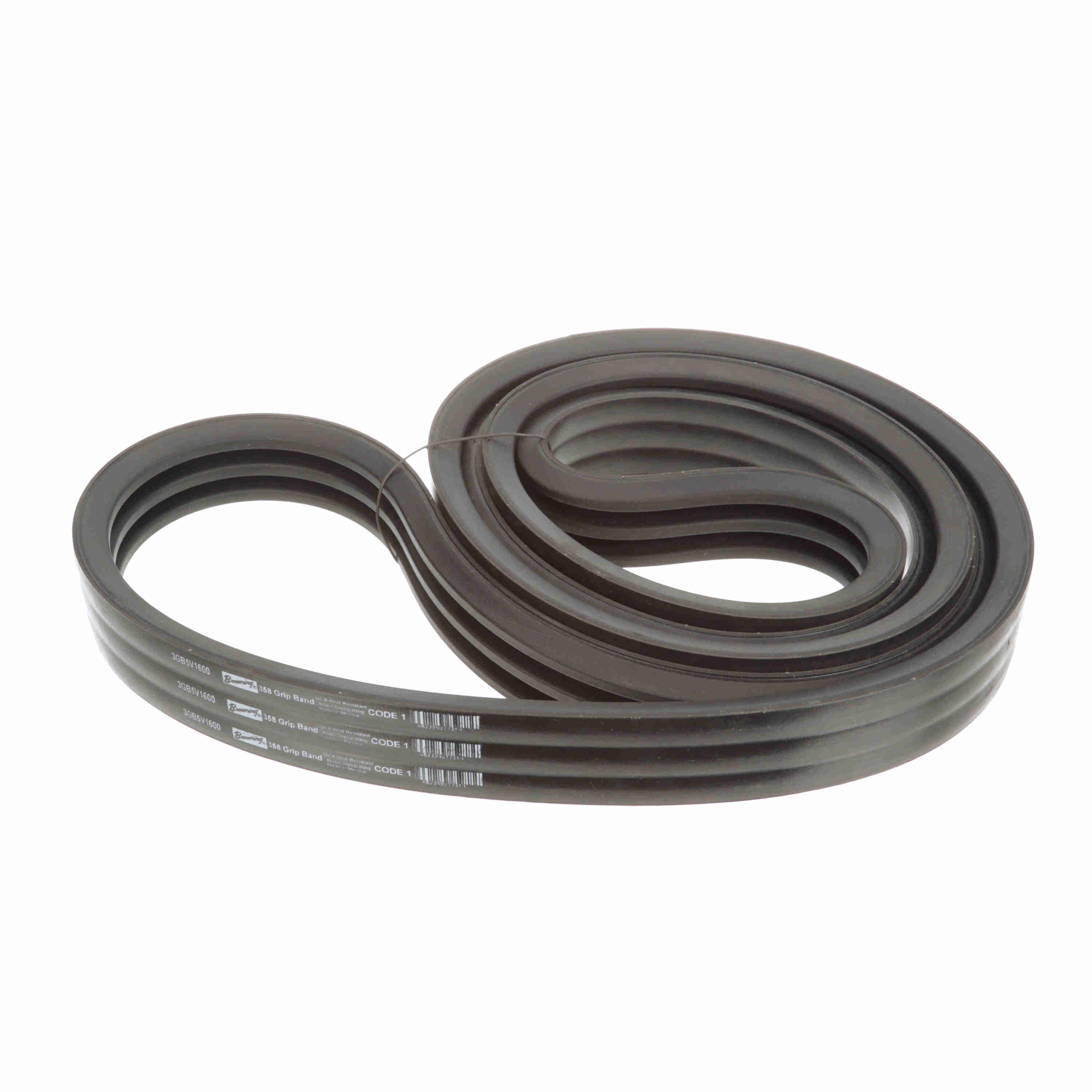

Browning® Gripband® 1087246 Non-Cogged V-Belt, 5V Section, 5/8 in W Top, 160 in L Outside, 17/32 in THK, Neoprene
Browning® Gripband® 1087246 Non-Cogged V-Belt, 5V Section, 5/8 in W Top, 160 in L Outside, 17/32 in THK, Neoprene
-
BrandBrowning®
-
UPC662289272259
-
Manufacturer Part Number1087246
-
CountryUSA
-
Temperature Range180 deg F
-
Thickness17/32 in
-
MaterialNeoprene
-
Top Width5/8 in
-
Reinforced MaterialPolyester
-
TypeNon-Cogged
-
Section Size5V
-
Number of Ribs3
-
Outside Length160 in
- Ideal for pulsing loads
- Eliminates the possibility of belt turnover on narrow and long centers banded belts assure all belts within the drive run in uniformity to the sheaves without any possibility of belt turnover even when centers are very long
- All Browning® banded belts provide the belt solution for pulsing/shock loads and the demands of the aggregate industry
- The banding material aids in preventing material from getting between the sheave and belts
- Oil and heat resistant
- Multiple V-belts in single unit construction
-
Alternative Part Number3GB5V1600
-
UNSPSC26111801
-
Package Description1/PK
-
Standards/ApprovalsRMA Standard
-
Warranty1 Year
-
Catalog
-
Warranty Information
-
Instruction/Installation Manual
