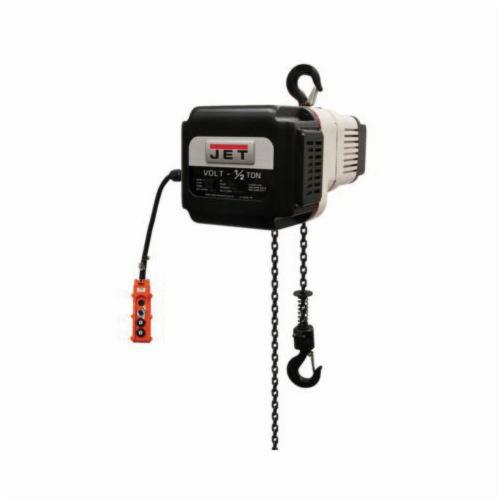

JET® JT9-185021 VOLT 3-Phase Electric Chain Hoist, 0.5 ton Load, 20 ft H Lifting, 1-1/2 hp Power Rating, 460 V AC
The VOLT Series is the first Electric Hoist to feature Full-Range Speed Control. This technology brings electronic variable speed functionality to the hoist. H4 Duty Rating means the VOLT is engineered for demanding, industrial environments and the toughest applications. Lifting speed is now entirely in the hands of the user and can be adjusted on an as needed basis. JET’s VOLT Series is a full line of Variable Speed Hoists from ¼ Ton to 10 Ton capacities; 10, 15 and 20 feet of lift standard, and in both single phase and 3-phase models with 24V, 2-button controller included. Engineered for control and precision, the VOLT Series will change the way you get the work done.
-
BrandJET®
-
UPC662755104411
-
Manufacturer Part NumberJT9-185021
-
CountryUSA
-
Load Capacity0.5 ton
-
Power Rating1-1/2 hp
-
Type3-Phase
-
Voltage Rating460 V AC
-
Control Type24 VAC 2-Button
-
Amperage Rating0.125 A
-
SeriesVOLT
-
Brake TypeElectromagnetic
-
Lifting Height20 ft
- Patented electronic variable speed technology allows for the lift speed to be adjusted to the application
- Full range speed control patented technology allows for smooth, seamless, continuous speed changes allowing for complete control throughout the lift
- True variable speed control allows you to lift and lower faster when you need the speed, but be able to slow down the speed when you need the control
- Eliminates bump-firing when positioning the work piece reducing downtime and maintenance
- With full range speed control, the VOLTs minimum speed allows the user to slowly inch the load down for a soft stop
- Soft starts and stops also increase the life of gear train components, load chain, hooks and brake components
- Safety and durability
- H4 duty rating means the VOLT is engineered for demanding, industrial environments and the toughest applications
- 1 falls
- Thermal overload protection to protects the motor from overheating in low voltage situations, protecting your investment
- Electromagnetic brake design is an industry proven safety feature that secures the load even if power is interrupted to the hoist
- Industry proven grade 80 black oxide coated load chain, patent pending
- Load tested to 125% of capacity with certificate
- 50% duty cycle
- H4 duty rating
- NEMA 4X compliant
- Standard across the VOLT line, overload protection prevents the operator from being able to lift more than the rated capacity of the hoist, protecting both the user and the equipment
- 6.3 x 19 mm load chain
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0554559 |
-
Alternative Part Number185021
-
UNSPSC24101600
-
Standards/ApprovalsANSI/ASME B30.16|HST-1 Standards|OSHA Regulations
-
Owners/User Manual
