Gates V-BELTS GAT 3-V-1060

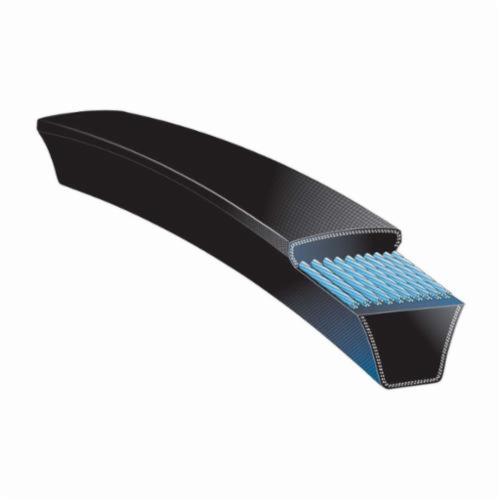

Combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. Transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC™ V-belts also have exclusive Gates construction features for longer life on your drives.
-
BrandGates® Power Transmission
-
UPC072053267297
-
Manufacturer Part Number3V1060
-
CountryUSA|Canada
-
Temperature Range-30 to 180 deg F
-
Thickness21/64 in
-
MaterialChloroprene
-
Top Width3/8 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeBanded Heavy Duty
-
Minimum Pulley Diameter3.82 in
-
Section Size3V
-
Series9332
-
Number of Ribs1
-
Outside Length106 in
- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
-
Alternative Part Number93321060
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
