Gates® Power Transmission Micro-V® 180J16 Heavy Duty V-Belt, J Section, 3/32 in W Top, 18 in L Outside, 5/32 in THK, Chloroprene
Exclusive truncated (shortened) profile gives Gates® Micro-V® belts increased flexibility, reduced heat buildup and allows performance at higher speeds on smaller diameter sheaves.
-
BrandGates® Power Transmission
-
UPC072053511314
-
Manufacturer Part Number180J16
-
CountryUSA
-
Thickness5/32 in
-
MaterialChloroprene
-
Top Width3/32 in
-
Reinforced MaterialPolyester
-
TypeHeavy Duty
-
Minimum Pulley Diameter3.183 in
-
Section SizeJ
-
Series9171
-
Number of Ribs16
-
Outside Length18 in

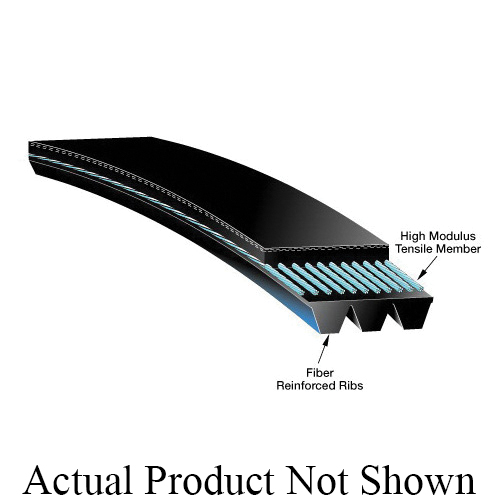

- Fiber reinforced ribs for excellent wear resistance
- High modulus, low stretch tensile member for added strength and dependability
- Smooth running for minimal vibration at high speeds
- Oil and heat-resistant, static conductivity
-
Alternative Part Number917101816
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Instruction/Installation Manual
-
Catalog
