Gates® Power Transmission Hi-Power® II B105 Banded Heavy Duty V-Belt, B Section, 21/32 in W Top, 108 in L Outside, 13/32 in THK, EPDM
The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
-
BrandGates® Power Transmission
-
UPC72053204209
-
Manufacturer Part NumberB105
-
CountryUSA|Canada
-
Thickness13/32 in
-
MaterialEPDM
-
Top Width21/32 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeBanded Heavy Duty
-
Minimum Pulley Diameter4.775 in
-
Section SizeB
-
Series9003
-
Number of Ribs1
-
Outside Length108 in

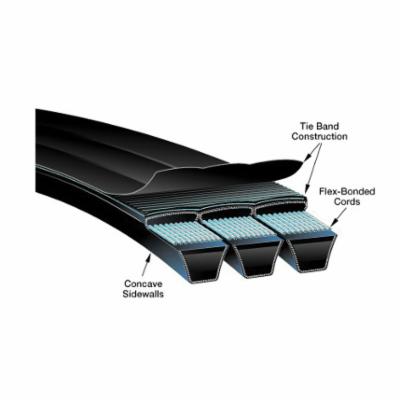

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
- Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging
| Competitor Name | Cross-Reference Number |
|---|---|
| Motion Industries | 00678776 |
-
Alternative Part Number90032105
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
