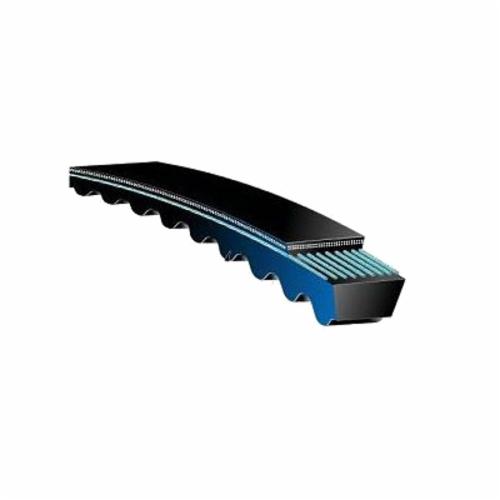

Gates® Power Transmission AX56 Tri-Power® 9012 Cogged Heavy Duty V-Belt, AX Section, 1/2 in W Top, 58 in L Outside, 5/16 in THK, EPDM
Most traditional v-belts struggle with small spaces and cause frequent interruptions, leading to costly downtime. Reduce these common drive issues with Tri-Power, your tried-and-true classical section replacement V-belt. The Tri-Power bandless V-belt is specifically designed to tackle the challenges associated with small sheave diameters on existing drives. Whether powering compressors, pumps, or other critical equipment, this belt ensures that your machinery runs efficiently and reliably. The advantage of this bandless V-belt lies in its ability to provide a like-for-like replacement without the need for full-system replacements. Its advanced design not only suits small sheaves but also enhances power transmission and reduces maintenance needs. Choose Gates Tri-Power V-belts for a dependable high-quality solution that keeps your existing drives running longer without interruptions.
-
BrandGates® Power Transmission
-
UPC072053200447
-
Manufacturer Part NumberAX56
-
CountryUSA|Canada
-
Temperature Range-70 to 250 deg F
-
Thickness5/16 in
-
MaterialEPDM
-
Top Width1/2 in
-
Reinforced MaterialPolyester
-
TypeCogged Heavy Duty
-

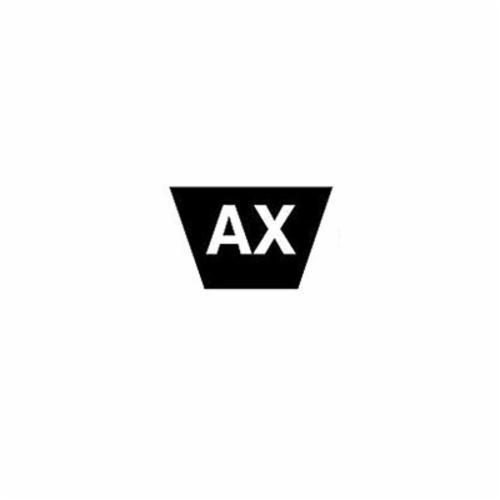

Section SizeAX
-
SeriesTri-Power® 9012
-
Number of Ribs1
-
Outside Length58 in
- Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as less stretch resulting in less maintenance
- Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
- Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
- Static conductive
- Patented ethylene material construction
| Competitor Name | Cross-Reference Number |
|---|---|
| Motion Industries | 00719450 |
-
Alternative Part Number90122056
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
