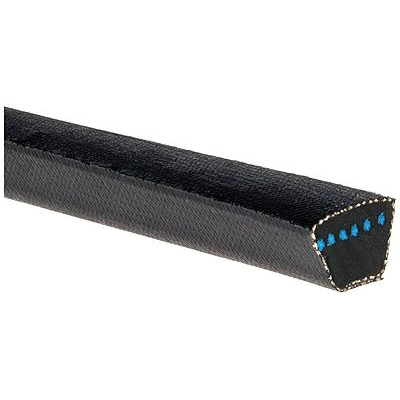

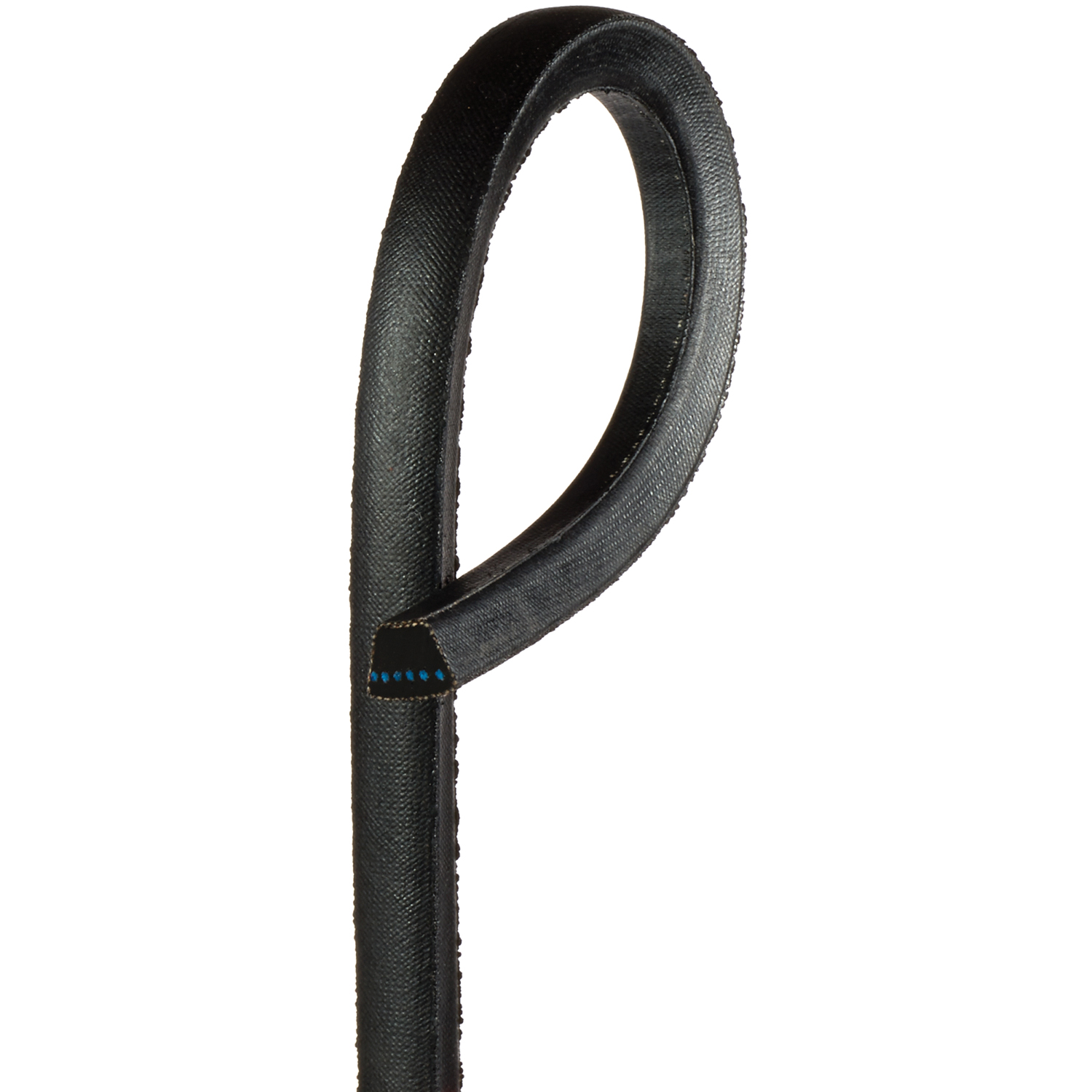

Gates® Power Transmission A36 Hi-Power® II 9002 Classical Heavy Duty V-Belt, A Section, 1/2 in W Top, 38 in L Outside, 5/16 in THK, EPDM
The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
-
BrandGates® Power Transmission
-
UPC072053201475
-
Manufacturer Part NumberA36
-
CountryUSA|Canada
-
Temperature Range-40 to 160 deg F
-
Thickness5/16 in
-
MaterialEPDM
-
Top Width1/2 in
-
Reinforced MaterialPolyester
-
TypeClassical Heavy Duty
-
Section SizeA
-
SeriesHi-Power® II 9002
-
Number of Ribs1
-
Outside Length38 in
- Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Gates® curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life
- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Static conductive (ISO 1813) and can as such be used in the conditions described in the directive 2014/34/EU- ATEX
- Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
- Match system sizes meet gates uniset tolerances, they can be installed without matching
- High quality rubber compound protects the belt against heat, ozone and sunlight
- The belt will not catch fire from heat buildup, even with severe slippage
- Long belt life reducing replacement and maintenance costs
- Excellent performance/cost ratio
- Reliability and efficiency
| Competitor Name | Cross-Reference Number |
|---|---|
| Motion Industries | 00677494 |
-
Alternative Part Number90022036
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3|REACH Compliant|RoHS 2 Compliant
-
