Gates® Power Transmission A34 Hi-Power® II 9002 Classical Heavy Duty V-Belt, A Section, 1/2 in W Top, 36 in L Outside, 5/16 in THK, EPDM
The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
-
BrandGates® Power Transmission
-
UPC72053201437
-
Manufacturer Part NumberA34
-
CountryUSA|Canada
-
Thickness5/16 in
-
MaterialEPDM
-
Top Width1/2 in
-
Reinforced MaterialPolyester
-
TypeClassical Heavy Duty
-

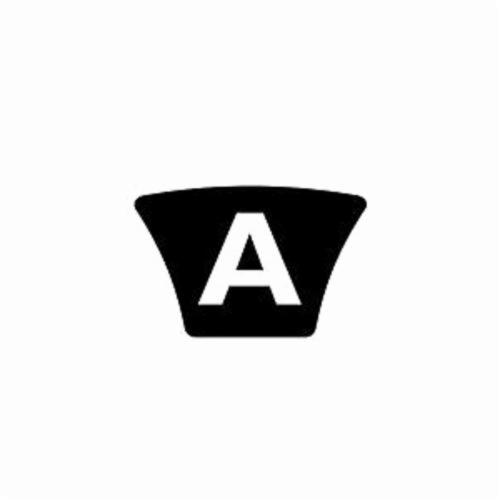

Section SizeA
-
SeriesHi-Power® II 9002
-
Number of Ribs1
-
Outside Length36 in
- Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging
- Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Flex-Weave® cover is a patented fabric construction for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Gates® curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life
- Static conductive
| Competitor Name | Competitor Part Number |
|---|---|
| Motion Industries | 00677474 |
-
Alternative Part Number90022034
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
