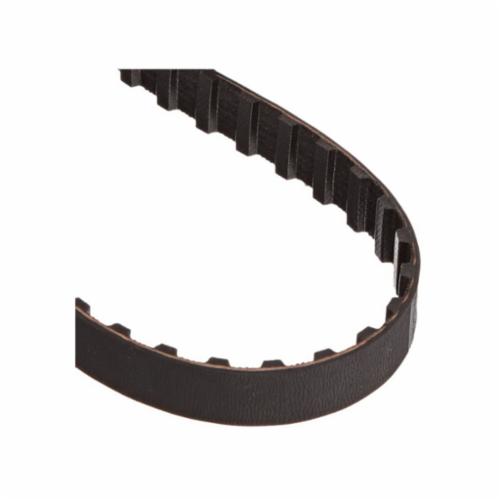

Gates® Power Transmission 187L050 PowerGrip® 9257 Type L Timing Belt, 50 Teeth, 3/8 in Pitch, 18-3/4 in OAL, 1/2 in W, Neoprene
The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.
-
BrandGates® Power Transmission
-
UPC72053564211
-
Manufacturer Part Number187L050
-
CountryUSA|Canada
-
Pitch3/8 in
-
Temperature Range-30 to 180 deg F
-
MaterialNeoprene
-
Reinforced MaterialFiberglass
-
TypeType L
-
Minimum Pulley Diameter1.88 in
-
Width1/2 in
-
SeriesPowerGrip® 9257
-
Number of Teeth50
-
Overall Length18-3/4 in
- The trapezoidal tooth profile makes this belt well suited for use in positioning applications
- Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
- Neoprene body provides protection against grime, grease, oil and moisture
- Nylon tooth facing provides a durable wear surface for longservice life
- Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
-
Alternative Part Number92572102
-
UNSPSC26111800
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
