Gates® Power Transmission PowerGrip® 1100H100 Heavy Timing Belt, 1 in W, 110 in OAL, 1/2 in Pitch, 220 Teeth, Neoprene
The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.
-
BrandGates® Power Transmission
-
UPC72053566000
-
Manufacturer Part Number1100H100
-
CountryUSA|Canada
-
Pitch1/2 in
-
Temperature Range-30 to 180 deg F
-
MaterialNeoprene
-
Reinforced MaterialFiberglass
-
TypeHeavy
-
Minimum Pulley Diameter3.13 in
-
Width1 in
-
Series9257
-
Number of Teeth220
-
Overall Length110 in

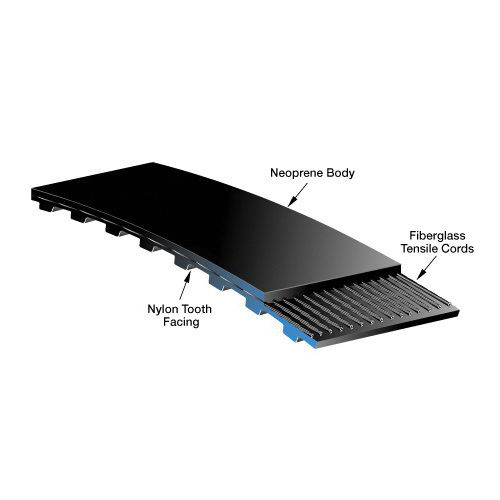

- Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
- Nylon tooth facing provides a durable wear surface for long service life
- Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
- Neoprene body provides protection against grime, grease, oil and moisture
- The trapezoidal tooth profile makes this belt well suited for use in positioning applications
-
Alternative Part Number92573221
-
UNSPSC26111802
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
