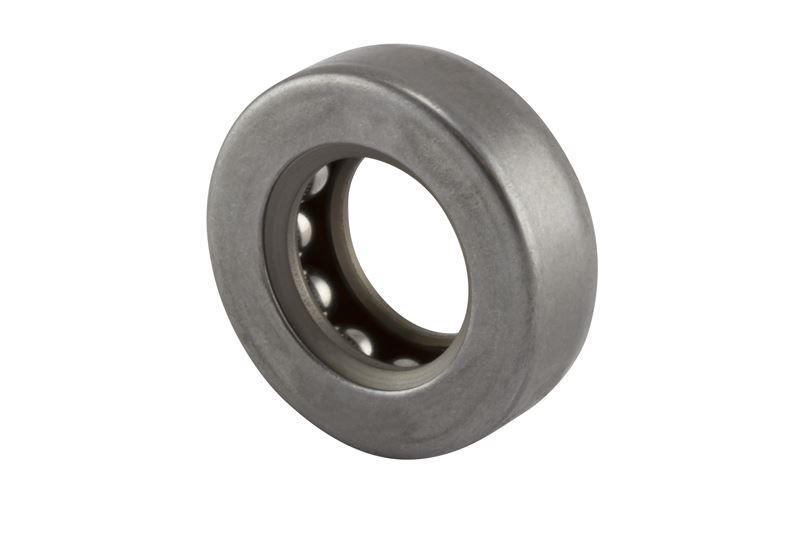

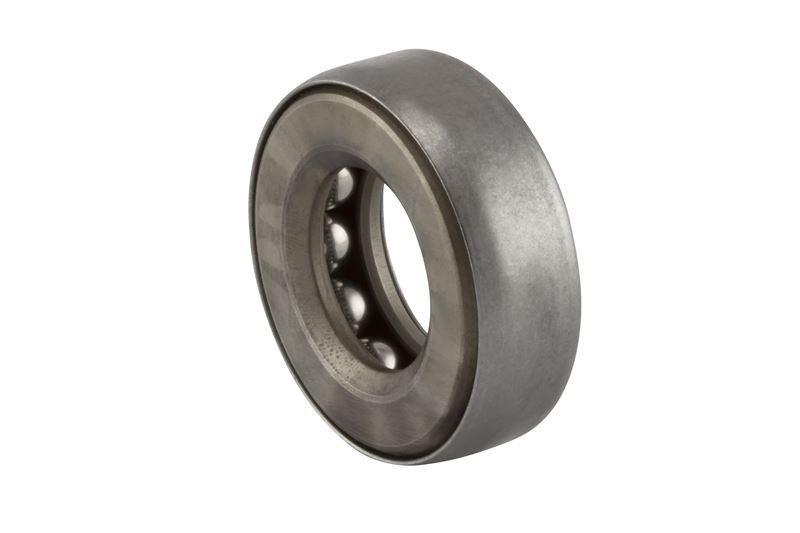

RBC Bearings UNGROUND THRUST BALL BEARINGS RBC 608-VBF-53
The 600® Series bearing is designed for moderate speeds and medium thrust loads. These bearings utilize a full ball complement. Rings are cold forged from hardenable strip steel and are carefully heat treated. These bearings may be plated or manufactured from stainless steel upon request. The entire assembly is housed in a soft steel band which lends itself to an easy press fit into a housing. The band also serves as a dust shield and helps retain the bearing lubricant. The upper ring is free to rotate in the band and has a close fit in the bore for the shaft. The lower ring is fixed in the band and has a shaft clearance in the bore.
-
BrandNice®
-
UPC637400410568
-
Manufacturer Part Number608VBF53
-
CountryUSA
-
Load Capacity1326 lb
-
Temperature Rating250 deg F
-
Maximum Speed1000 rpm
-
Width0.594 in
-
Series600®
-
Bearing MaterialCarbon Steel
-
Outside Diameter1.89 in
-
Bore Diameter0.9 in
- These bearings are shipped oiled with a rust preventative
- Suitable for lower speed applications of up to 1000 rpm
- Soft steel band serves as a dust shield
- Designed for moderate loads
- Hardened rings
- Full complement of balls for maximum capacity
- 1010 soft carbon steel band offers ease of installation
- Upper ring is free to rotate and has close fit for shafts
- Lower ring is fixed and has shaft clearance in the bore
- Flat outside ring
- Case hardened carbon steel rings
- Grade 200 carbon steel balls
- Full compliant
- Standard slush
-
UNSPSC31171507
-
Package Description10/PK
-
Standards/ApprovalsASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
