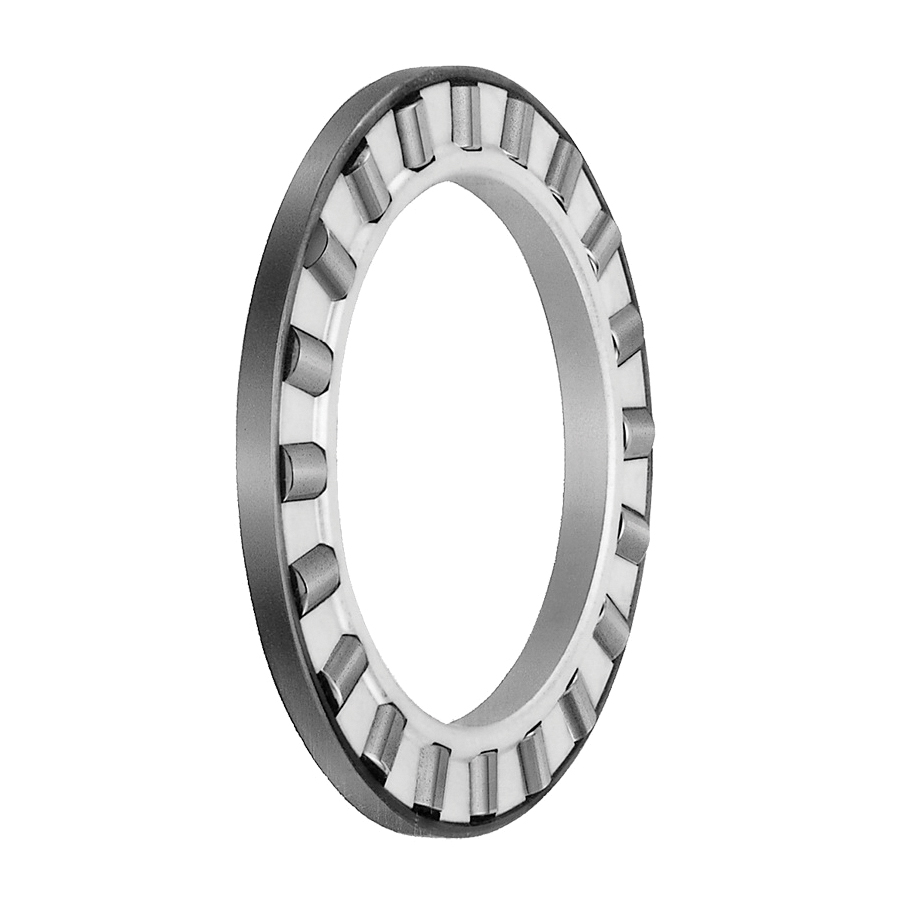

IKO AZK25425 Metric Series Thrust Roller Bearing, 25 mm Dia Bore, 42 mm OD, 1 Row, 5 mm W, 22700 N Dynamic/60700 N Static Load
IKO designs and manufactures thrust bearings with precisely machined cages and rollers to handle high axial loads in confined spaces. Two styles are available - thrust needle roller bearings and Thrust Roller Bearings. Thrust Roller Bearings feature caged cylindrical rollers and are well suited to applications requiring high accuracy at high speeds and fluctuating heavy loads.
-
BrandIKO
-
Manufacturer Part NumberAZK25425
-
CountryUSA
-
Load Capacity22700 N Dynamic/60700 N Static
-
Maximum Speed9000 rpm
-
Bearing MaterialSteel
-
Bore Diameter25 mm
- Highly rigid cage precisely guides rollers to handle heavy loads at high rotational speeds
- Inner surface doubles as guide surface
- Application examples include driving mechanisms for automobiles, machine tools and high-pressure pumps
- Without inner and outer ring
-
UNSPSC31171553
-
