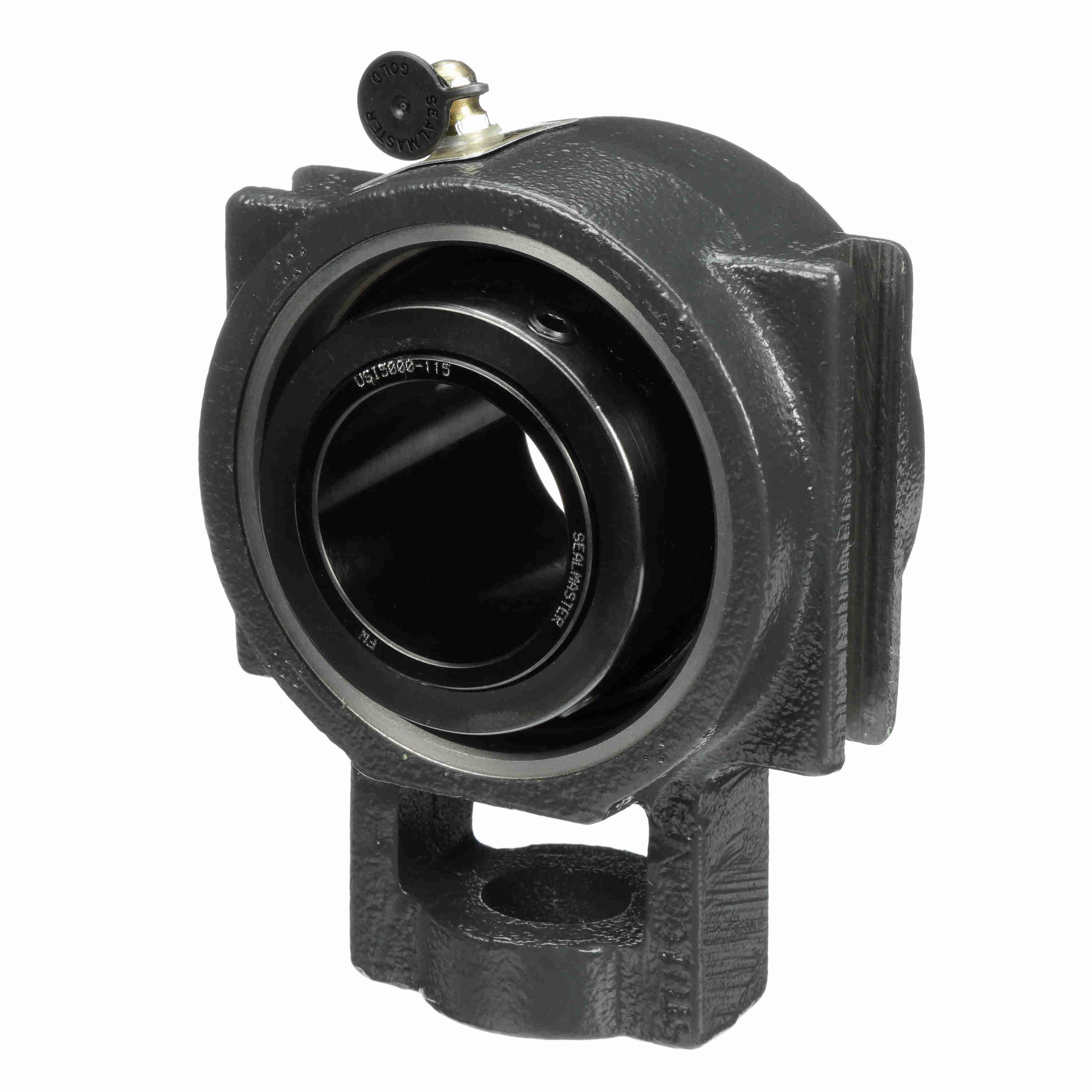

Sealmaster STU1000NEX115/16 TAKE-UP BEARINGS BRW STU-1000-NE X 1-15/16
Sealmaster® USTU performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USTU is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction.
-
BrandSealmaster®
-
UPC662461363119
-
Manufacturer Part Number737380
-
CountryUSA
-
Load Capacity23520 lb Dynamic
-
Temperature Rating250 deg F
-
FinishUncoated
-
TypeNon-Expansion Wide Slot
-
Height4-3/4 in
-
Width2-7/8 in
-
SeriesUSTU 5000
-
Bearing MaterialSteel
-
Length6-3/16 in
-
Bore Diameter1-15/16 in
-
Suitable For Use WithUSTU Take Up Frame
- Collar mount locking
- Metal land riding retainer type
- Replaceable cartridge insert
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
-
Alternative Part NumberUSTU5000-115
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Catalog
-
Instruction/Installation Manual
