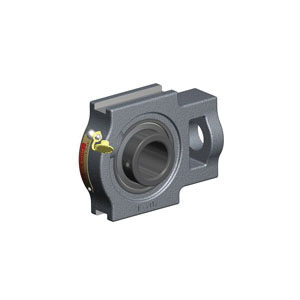

Sealmaster 4"-ID BB TAKE-UP BEARING UNITS SEA MST-64
Sealmaster® Gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461001479
-
Manufacturer Part Number700171
-
CountryUSA
-
Load Capacity29905 lb Dynamic
-
Temperature Rating250 deg F
-
FinishUncoated
-
TypeMedium Duty Non-Expansion Wide Slot
-
Height9-3/8 in
-
Width3-1/2 in
-
SeriesMST
-
Bearing MaterialSteel
-
Length11-7/8 in
-
Bore Diameter4 in
-
Suitable For Use WithMSTH-15 Center Pull Take Up Frame
- Wide outer race
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberMST-64
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Catalog
-
Instruction/Installation Manual
