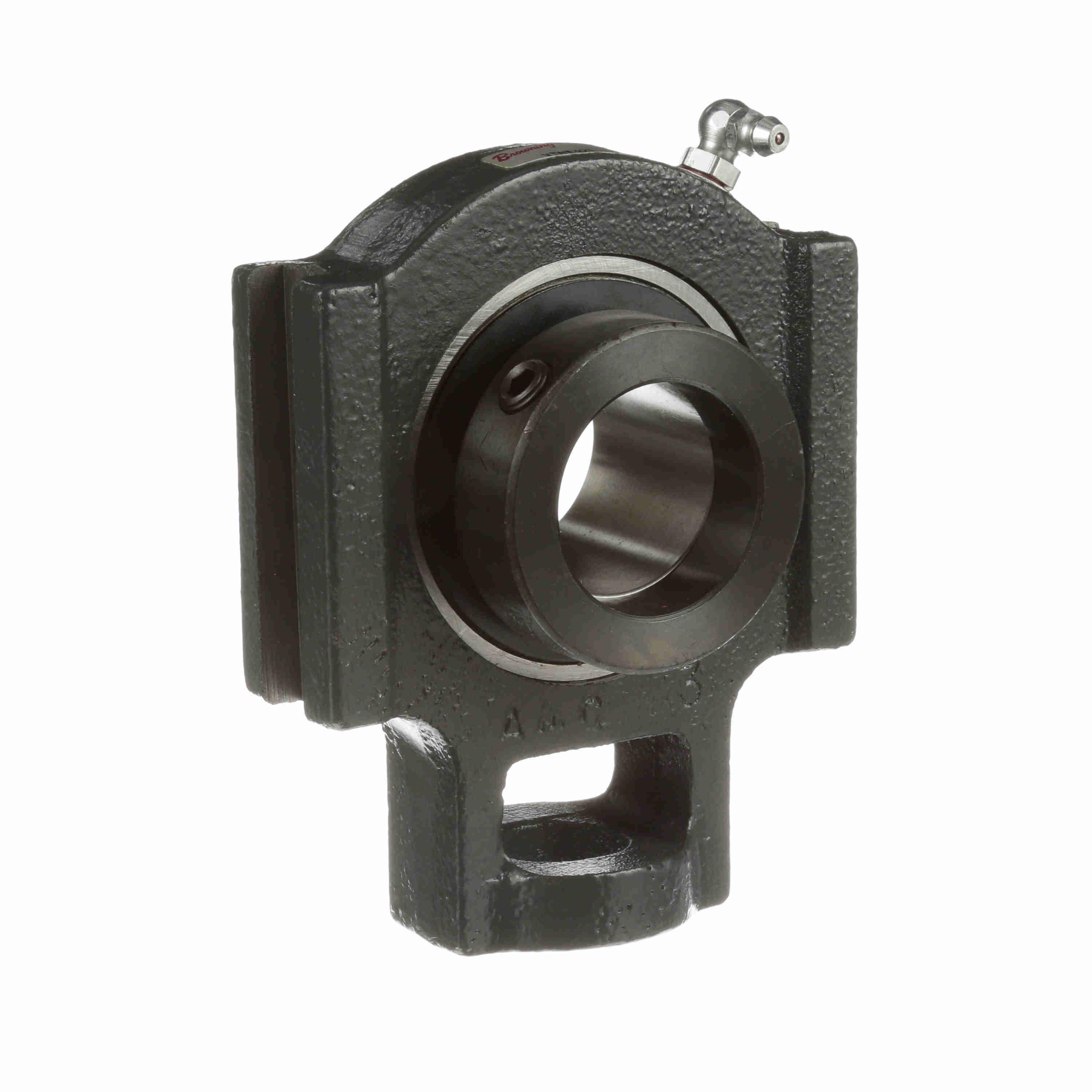

Browning 1"-ID BB TAKE-UP BEARING UNITS BRW VTWE-216
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289528103
-
Manufacturer Part Number767365
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
TypeNon-Expansion Normal Duty
-
Height3-1/2 in
-
Width1-1/2 in
-
SeriesVTWE
-
Bearing MaterialSteel
-
Length4-3/32 in
-
Bore Diameter1 in
-
Suitable For Use With3SF10, 6SF10, 9SF10, 1SF10 Frames
- Zone hardened inner race
- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVTWE-216
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
