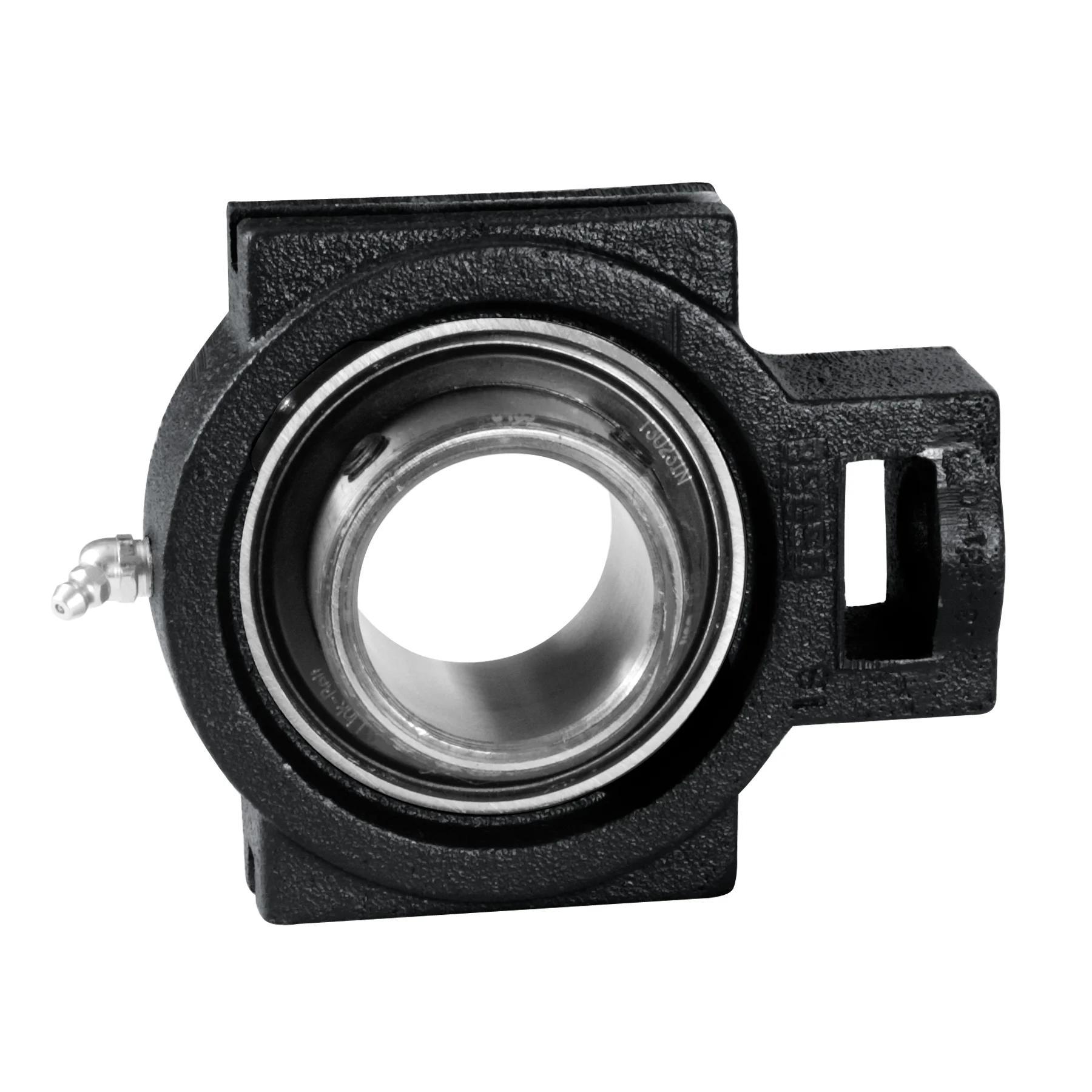

Link-Belt® 10408258 200 Standard Duty Standard Slot Take-Up Ball Bearing Unit, 5/8 in Dia Bore, 3 in L x 13/16 in W x 2-1/4 in H, 2360 lb Dynamic/1110 lb Static Load
200 series standard and intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.
-
BrandLink-Belt®
-
UPC662327148096
-
Manufacturer Part Number10408258
-
CountryUSA|Canada
-
Load Capacity2360 lb Dynamic/1110 lb Static
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
TypeStandard Duty Standard Slot
-
Height2-1/4 in
-
Width13/16 in
-
Series200
-
Bearing MaterialAlloy Steel
-
Length3 in
-
Bore Diameter5/8 in
- 5/8 in Mounted Ball Bearing, Standard Duty, Cast Iron Take-up Block, Setscrew Locking, Single Lip Contact Seal
- Compact, 1-piece housing provides excellent mounting support
- Integral bearing seals
- Cast iron housing
- Wide inner ring for increased shaft stability
- Spring locking setscrew mount
- Alignable and non-relubricatable
- Single lip contact seal
- Size code 203
-
Alternative Part NumberT3U210N
-
UNSPSC31171500
-
Standards/ApprovalsANSI|ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
