McGill TPR-ID SPHERICAL ROLLER BEARINGS MCG SB-22215-K-W-33-SS

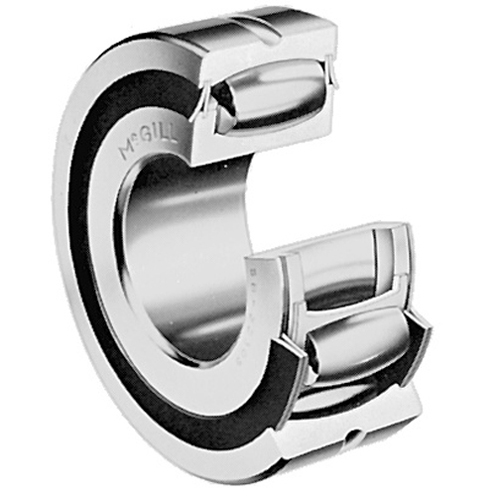

Aerospace and specialty spherical roller bearings utilize barrel shaped rolling elements and have some misalignment capability. These bearings can be manufactured in wide range of styles, materials, sizes and precision classes. All bearings are custom designed based on application needs.
-
BrandMcGill®
-
UPC726166005511
-
Manufacturer Part Number0315266000
-
CountryUSA
-
Load Capacity37600 lb Dynamic/41400 lb Static
-
Cage MaterialSteel
-
Temperature Rating-30 to 300 deg F
-
FinishUncoated
-
Maximum Speed3500 rpm
-
Closure TypeDouble Standard Seal
-
Width1.2205 in
-
Series22200
-
Number of Rows1
-
Bearing Material52100 Steel
-
Outside Diameter5.1181 in
-
Bore Diameter2.9528 in
- Reduced weight/envelope with the same or higher performance
- Longer fatigue life
- Higher operating temperature
- Improved corrosion resistance
- Reduced vibration
- Better fit
- Easier installation
- Improved reliability
- Misalignment capability
- Annular lubrication groove and holes
- Inner ring raceway flanges
- C3-radial internal clearance greater than standard clearance
- Standard lubrication
- NYLAPLATE® seal on both sides
- Cylindrical outside ring
-
Alternative Part NumberSB 22215K C3 W33 SS
-
UNSPSC31171560
-
Standards/ApprovalsAS9100|Nadcap Certified
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
