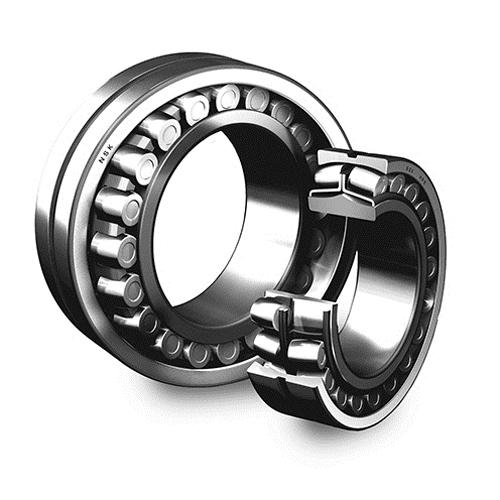

NSK 22313CAME4C3 HPS™ Heavy Spherical Roller Bearing, 65 mm Dia Bore, 140 mm OD, 2 Rows, 48 mm W, 375000 N Dynamic/380000 N Static Load
NSKHPS™ Spherical Roller Bearings are state-of-the-art material technology bearings, suitable for high speeds and high loads. The enable equipment downsizing and are suitable for a wide variety of applications. HPS™ sphericals are available with both steel or brass cage.
-
BrandNSK
-
UPC029176086991
-
Manufacturer Part Number22313CAME4C3
-
CountryUSA
-
Load Capacity375000 N Dynamic/380000 N Static
-
Cage MaterialBrass
-
Temperature Rating200 deg C
-
Maximum Speed3200 rpm Grease/4000 rpm Oil
-
Closure TypeOpen
-
TypeHeavy
-
Width48 mm
-
SeriesHPS™ 223
-
Number of Rows2
-
Bearing MaterialSteel
-
Outside Diameter140 mm
-
Bore Diameter65 mm
- Highest load rating SRB's
- Optimal raceway design and surface finishing
- High cleanliness Z-steel
- Up to twice the operating life
- Up to 20% higher limiting speed
- 25% higher dynamic load rating
- Improved productivity lowers maintenance cost
- High load rating enables downsizing
- High temperature and misalignment
-
UNSPSC31171510
-
Package Description1/PK
-
