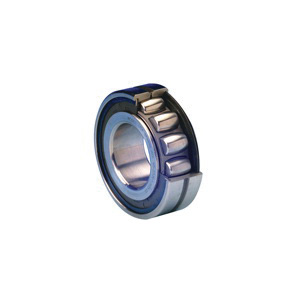

McGill STR-ID SPHERICAL ROLLER BEARINGS MCG SB-22209-W-33-SS
Aerospace and specialty spherical roller bearings utilize barrel shaped rolling elements and have some misalignment capability. These bearings can be manufactured in wide range of styles, materials, sizes and precision classes. All bearings are custom designed based on application needs.
-
BrandMcGill®
-
UPC726166003159
-
Manufacturer Part Number0309006000
-
CountryUSA
-
Load Capacity17800 lb Dynamic/17700 lb Static
-
Cage MaterialSteel
-
Temperature Rating-30 to 300 deg F
-
FinishUncoated
-
Maximum Speed5600 rpm
-
Closure TypeDouble Standard Seal
-
Width0.9055 in
-
Series22200
-
Number of Rows1
-
Bearing Material52100 Steel
-
Outside Diameter3.3465 in
-
Bore Diameter1.7717 in
- Reduced weight/envelope with the same or higher performance
- Longer fatigue life
- Higher operating temperature
- Improved corrosion resistance
- Reduced vibration
- Better fit
- Easier installation
- Improved reliability
- Misalignment capability
- Annular lubrication groove and holes
- Inner ring raceway flanges
- Standard radial internal clearance
- Standard lubrication
- NYLAPLATE® seal on both sides
- Cylindrical outside ring
-
Alternative Part NumberSB 22209 W33 SS
-
UNSPSC31171560
-
Standards/ApprovalsAS9100|Nadcap Certified
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
