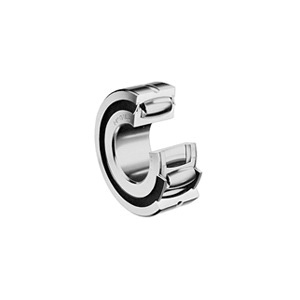

McGill STR-ID SPHERICAL ROLLER BEARINGS MCG SB-22204-W-33-Y-SS
Aerospace and specialty spherical roller bearings utilize barrel shaped rolling elements and have some misalignment capability. These bearings can be manufactured in wide range of styles, materials, sizes and precision classes. All bearings are custom designed based on application needs.
-
BrandMcGill®
-
UPC726166001155
-
Manufacturer Part Number0304606000
-
CountryUSA
-
Load Capacity7000 lb Dynamic/5800 lb Static
-
Cage MaterialSteel
-
Temperature Rating-30 to 300 deg F
-
FinishUncoated
-
Maximum Speed11000 rpm
-
Closure TypeDouble Lip Wiping Seal
-
Width0.7087 in
-
Series22200
-
Number of Rows1
-
Bearing Material52100 Steel
-
Outside Diameter1.8504 in
-
Bore Diameter0.7874 in
- Reduced weight/envelope with the same or higher performance
- Longer fatigue life
- Higher operating temperature
- Improved corrosion resistance
- Reduced vibration
- Better fit
- Easier installation
- Improved reliability
- Misalignment capability
- Annular lubrication groove and holes
- Inner ring raceway flanges
- Standard radial internal clearance
- Standard lubrication
- LAMBDA® seal on both sides
- Cylindrical outside ring
-
Alternative Part NumberSB 22204 W33 YSS
-
UNSPSC31171560
-
Standards/ApprovalsAS9100|Nadcap Certified
-
