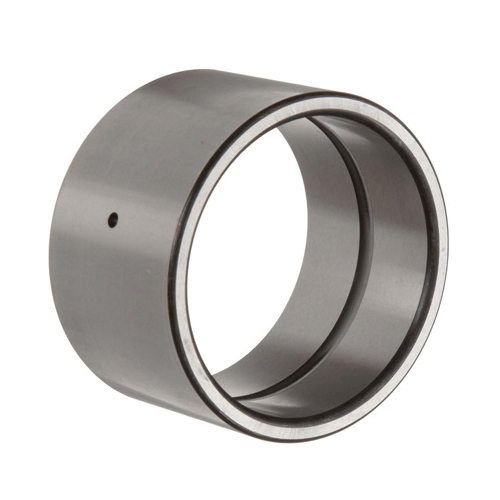

Koyo IR-101412 Inch Series Inner Ring, 5/8 in ID x 7/8 in OD, 3/4 in OAW, For Use With HJ-142212 Heavy Duty Needle Roller Bearing, Steel
Koyo IR-101412 Inch Series Inner Ring, 5/8 in ID x 7/8 in OD, 3/4 in OAW, For Use With HJ-142212 Heavy Duty Needle Roller Bearing, Steel
-
BrandKoyo
-
UPC605790208232
-
Manufacturer Part NumberIR-101412
-
CountryUSA
-
FinishPolished Chrome
-
MaterialSteel
-
SeriesIR Inch Series
-
Inside Diameter5/8 in
-
Outside Diameter7/8 in
-
Overall Width3/4 in
-
Suitable For Use WithHJ-142212 Heavy Duty Needle Roller Bearing
- Ideal choice when shaft is not practical to use as inner raceway
- Provided in inch nominal dimensions for use with inch series heavy-duty needle roller bearings
- Designed to meet established inch tolerances
- Selected size should be wider than matching needle roller bearing
- Maximum shaft fillet radius cannot exceed inner ring bore chamfer
- Designed to be axially clamped against shoulder for loose transition fit on shaft
- After mounting, for tight transition fit (keeping inner ring from rotating relative to shaft), inner ring OD must not exceed raceway diameter on matching bearing
- After mounting, if OD of inner ring exceeds the required raceway diameter for matching bearing, ring should be ground to proper diameter while mounted to shaft
-
Alternative Part NumberIR101412PBL125
-
UNSPSC31171547
-
Standards/ApprovalsASTM F2431
-
