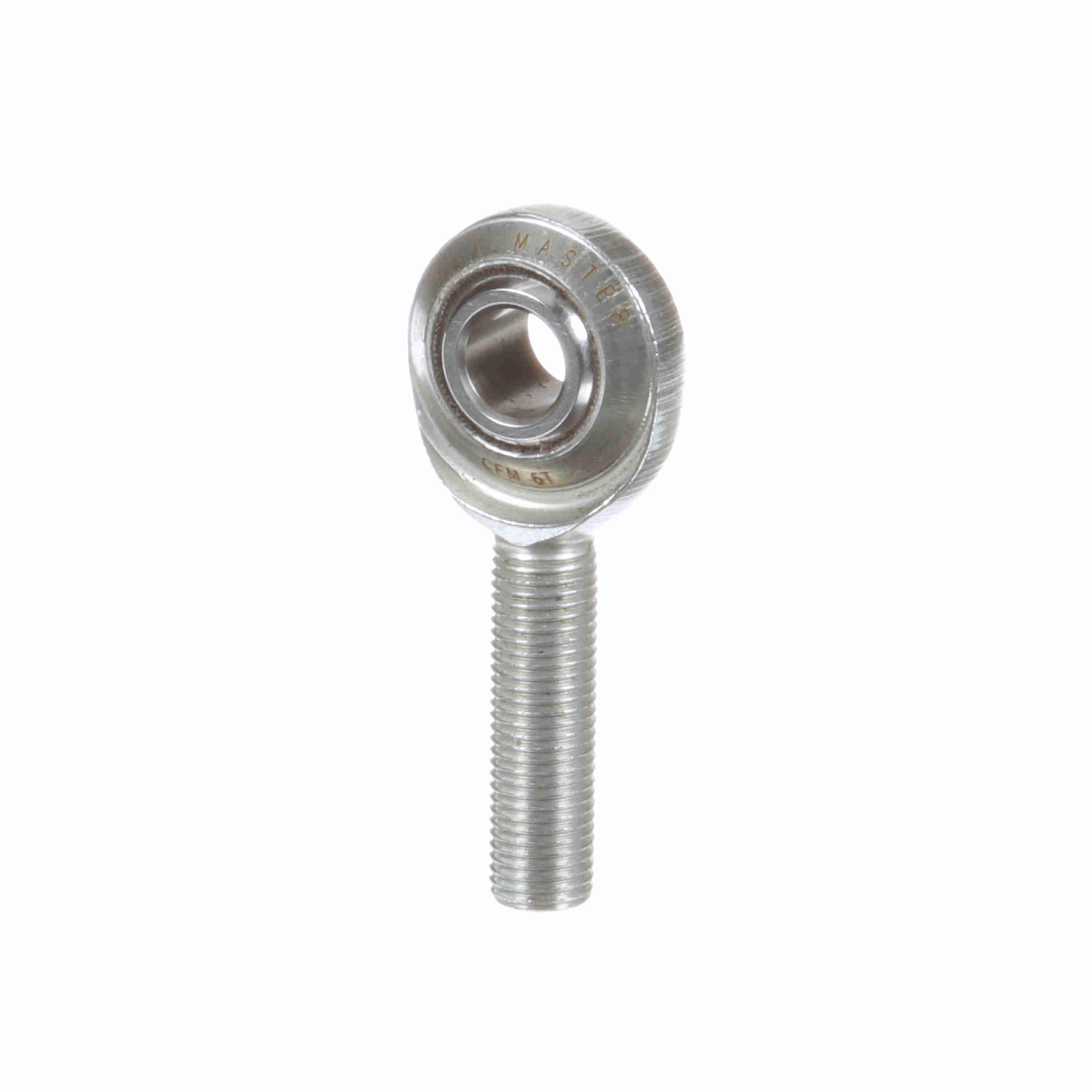

Sealmaster 3/8" MALE ROD ENDS SEA CFM-6-T
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
-
BrandSealmaster®
-
UPC662288721109
-
Manufacturer Part Number1480604000
-
CountryUSA
-
Load Capacity2950 lb Static
-
Temperature Rating250 deg F
-
MaterialCarbon Steel
-
Thread Size3/8-24 Dia x 1.219 in L
-
Thread TypeMale UNF
-
Type2-Piece Precision Grade General Purpose
-
Width1/2 in
-
SeriesCFM-T
-
Outside Diameter1 in
-
Bore Diameter3/8 in
- Machined carbon steel housings with protective coating for corrosion resistance
- Two-Piece Commercial Construction
- Heat Treated, Plated Alloy steel housing
- Male External Threads
- PTFE Liner
-
Alternative Part NumberCFM 6T
-
UNSPSC31171508
-
Package DescriptionEACH
-
