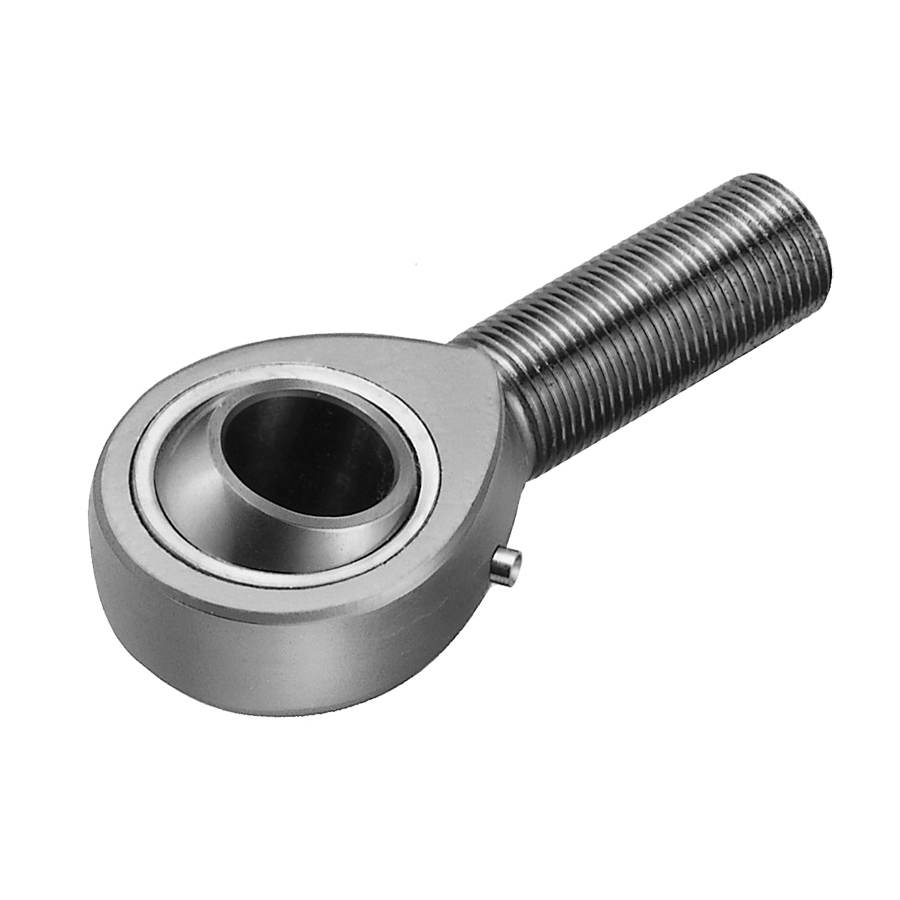

IKO PILLOBALL POSB5LNF Inch Series Insert/Lubrication Type Rod End With Zerk Type Grease Nipple, 5/16 in Dia Bore, 7/8 in OD, 0.437 in W, 6800 N Dynamic/14200 N Static Load
PILLOBALL self-aligning Rod Ends can be used as link mechanisms in a variety of machines and are designed for easy installation.
-
BrandIKO
-
Manufacturer Part NumberPOSB5LNF
-
CountryUSA
-
Load Capacity6800 N Dynamic/14200 N Static
-
Temperature Rating150 deg C
-
FinishZinc Chromate Plated
-
Thread Size24 UNF Class 3A
-
Thread TypeLeft Hand Male
-
TypeInsert/Lubrication Type
-
Width0.437 in
-
SeriesPOSB Inch Series
-
Dimensions2.312 in H
-
Outside Diameter7/8 in
-
Bore Diameter5/16 in
- Each PILLOBALL Rod End type achieves smooth rotational and oscillatory motion while providing excellent wear and loading capabilities
- Insert-type PILLOBALLS are designed with a special copper alloy bushing to provide effective run-in properties
-
UNSPSC31171510
-
