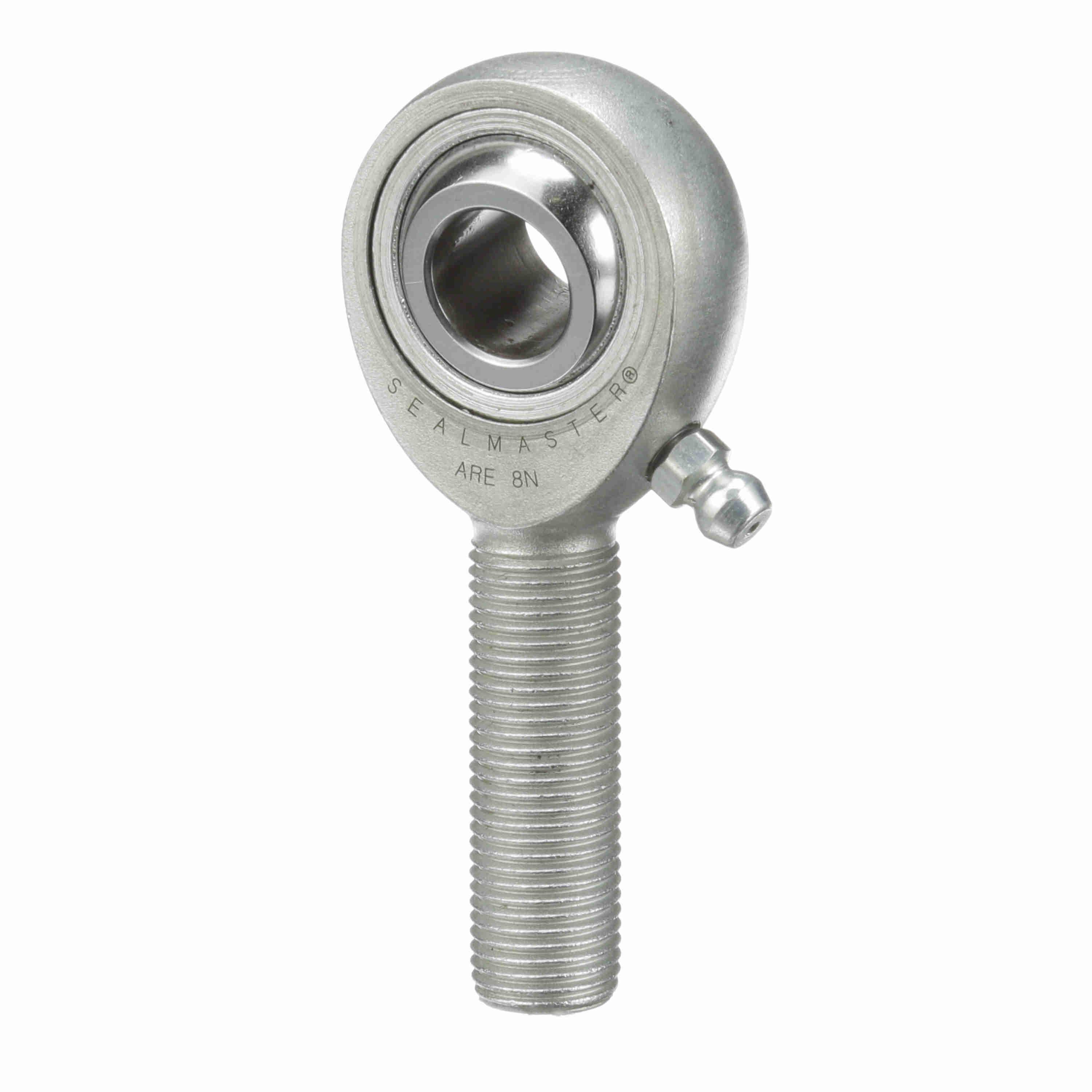

Sealmaster 1/2" 4-PC MALE ROD ENDS SEA ARE-8-N
Sealmaster® 3-piece rod ends incorporate a 1-piece race formed around a hardened steel chrome plated ball in a controlled manufacturing process. 3-piece construction offers flexibility for alternative race materials designed to help solve specific application problems.
-
BrandSealmaster®
-
UPC662288718727
-
Manufacturer Part Number1440801000
-
CountryUSA
-
Load Capacity13500 lb Static
-
Temperature Rating350 deg F
-
MaterialAlloy Steel
-
Thread Size1/2-20 x 1.469 in
-
Thread TypeMale UNF
-
Type3-Piece Extra Capacity Precision
-
Width5/8 in
-
SeriesARE
-
Outside Diameter1.312 in
-
Bore Diameter1/2 in
- Higher average tensile strength and fatigue life, competition
- Wrench flat on female rod ends facilitates assembly
- Reduces pound-out in applications with high frequency oscillation, vibration or shock loading
- Improved spherical ball-race conformity for even load distribution
- Precision ball-race fit
- Less wear than rod ends with 2-piece race designs
- Manufactured in steel, aluminum bronze and self lubricating Delrin®
- Alloy steel heat treated and chrome plated for corrosion resistance
- Right hand thread
- Grease fitting
- Male External Threads
- One-Piece Carbon Steel Outer Race
-
Alternative Part NumberARE 8N
-
UNSPSC31171508
-
Package DescriptionEACH
-
Standards/ApprovalsAMBA Standard
-
Specification Sheet
