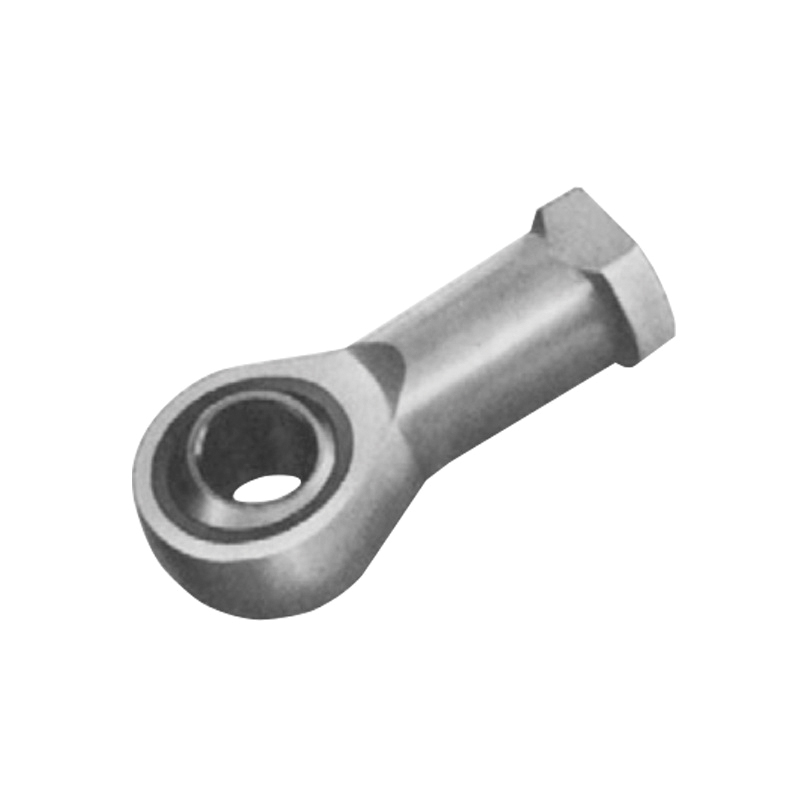

IKO PILLOBALL PHSB5LNF Inch Series Insert/Lubrication Type Rod End With Zerk Type Grease Nipple, 5/16 in Dia Bore, 7/8 in OD, 0.437 in W, 6800 N Dynamic/16500 N Static Load
PILLOBALL self-aligning Rod Ends can be used as link mechanisms in a variety of machines and are designed for easy installation.
-
BrandIKO
-
Manufacturer Part NumberPHSB5LNF
-
CountryUSA
-
Load Capacity6800 N Dynamic/16500 N Static
-
Temperature Rating180 deg C
-
FinishZinc Chromate Plated
-
Thread SizeM24
-
Thread TypeLeft Hand Female UNF
-
TypeInsert/Lubrication Type
-
Width0.437 in
-
SeriesPHSB Inch Series
-
Dimensions1.812 in H
-
Outside Diameter7/8 in
-
Bore Diameter5/16 in
- Each PILLOBALL Rod End type achieves smooth rotational and oscillatory motion while providing excellent wear and loading capabilities
- Insert-type PILLOBALLS are designed with a special copper alloy bushing to provide effective run-in properties
-
UNSPSC31171510
-
