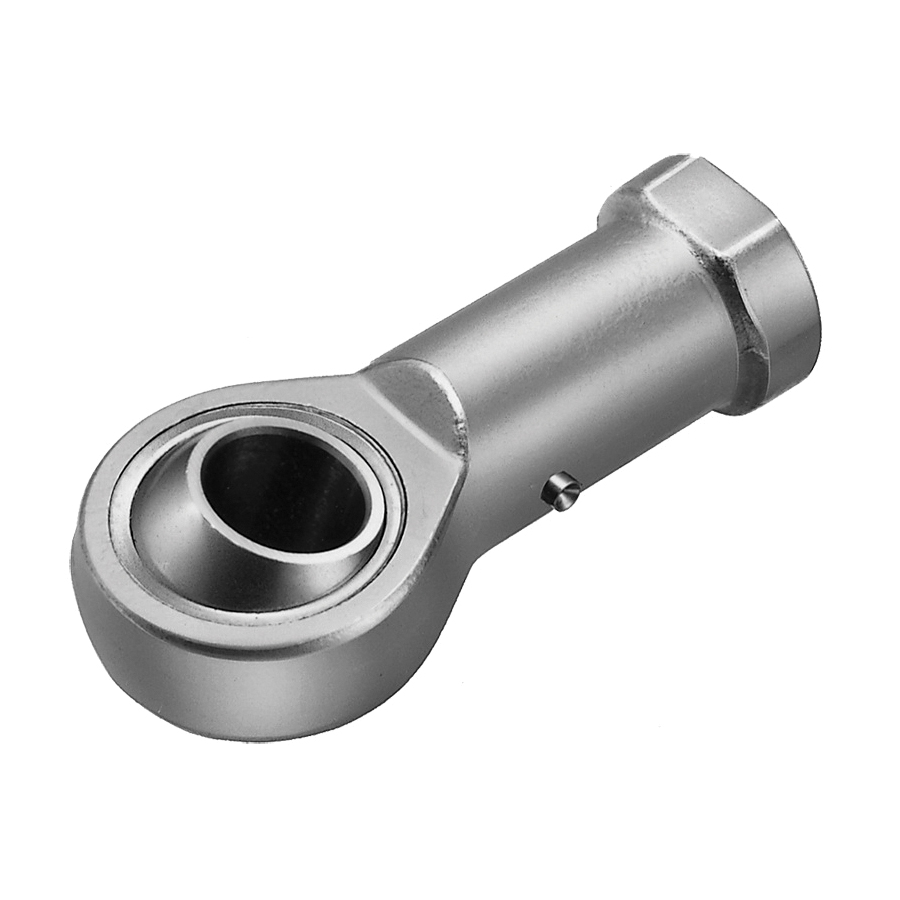

IKO PILLOBALL PHS14A Metric Series Insert/Lubrication Type Rod End, 14 mm Dia Bore, 34 mm OD, 22 mm W, 16800 N Dynamic/20900 N Static Load
PILLOBALL self-aligning Rod Ends can be used as link mechanisms in a variety of machines and are designed for easy installation.
-
BrandIKO
-
Manufacturer Part NumberPHS14A
-
CountryUSA
-
Load Capacity16800 N Dynamic/20900 N Static
-
Temperature Rating180 deg C
-
FinishZinc Chromate Plated
-
Thread SizeM14x2
-
Thread TypeRight Hand Female
-
TypeInsert/Lubrication Type
-
Width22 mm
-
SeriesPHS-A Metric Series
-
Dimensions74 mm H
-
Outside Diameter34 mm
-
Bore Diameter14 mm
- Each PILLOBALL Rod End type achieves smooth rotational and oscillatory motion while providing excellent wear and loading capabilities
- Insert-type PILLOBALLS are designed with a special copper alloy bushing to provide effective run-in properties
-
UNSPSC31171510
-
