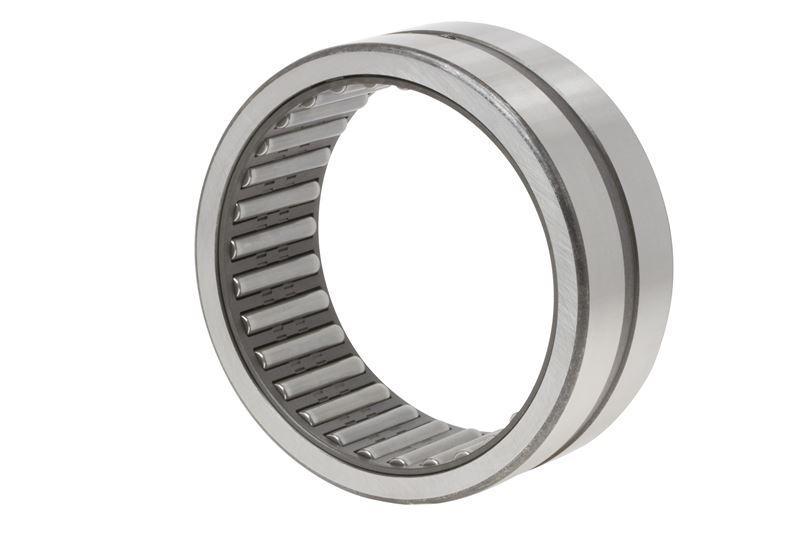

RBC® SJ9728 Pitchlign® SJ Series Heavy Duty Precision Ground Needle Roller Bearing, 4-1/4 in Dia Bore, 5-1/4 in OD, 1 Row, 2 in W, 85200 lb Load
The RBC® SJ series of Pitchlign® heavy duty needle roller bearings are supplied in standard envelopes in both sealed and unsealed configurations. There are eight possible seal configurations. The seals can include double or single seal with the seal lip turned inward or outward. The seal can be mounted in the radius end of the ring or the chamfered end of the ring for optimum mounting variations.
-
BrandRBC®
-
UPC637400017781
-
Manufacturer Part NumberSJ9728
-
CountryUSA
-
Load Capacity85200 lb
-
Cage MaterialSteel
-
Temperature Rating-40 to 300 deg F
-
Maximum Speed3100 rpm
-
Closure TypeOpen
-
TypeHeavy Duty
-
Width2 in
-
SeriesPitchlign® SJ Series
-
Number of Rows1
-
Bearing Material52100 Steel
-
Outside Diameter5-1/4 in
-
Bore Diameter4-1/4 in
- Long life, caged roller bearing
- 30600 lb dynamic/85200 lb static
-
UNSPSC31171512
-
Package Description1/PK
-
Standards/ApprovalsASPR|CAS|DFAR|FAR Standards|MS51961
-
Warranty90 Days
-
