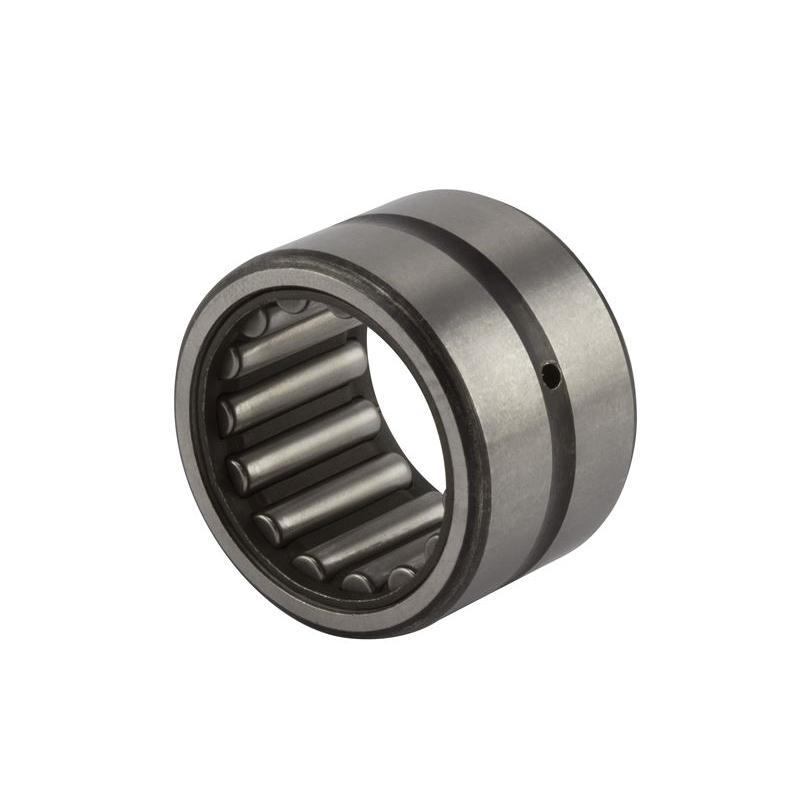

RBC® SJ7154 Pitchlign® SJ Series Heavy Duty Precision Ground Needle Roller Bearing, 3/4 in Dia Bore, 1-1/4 in OD, 1 Row, 1 in W, 8700 lb Load
The RBC® SJ series of Pitchlign® heavy duty needle roller bearings are supplied in standard envelopes in both sealed and unsealed configurations. There are eight possible seal configurations. The seals can include double or single seal with the seal lip turned inward or outward. The seal can be mounted in the radius end of the ring or the chamfered end of the ring for optimum mounting variations.
-
BrandRBC®
-
UPC637400014179
-
Manufacturer Part NumberSJ7154
-
CountryUSA
-
Load Capacity8700 lb
-
Cage MaterialSteel
-
Temperature Rating-40 to 300 deg F
-
Maximum Speed17000 rpm
-
Closure TypeOpen
-
TypeHeavy Duty
-
Width1 in
-
SeriesPitchlign® SJ Series
-
Number of Rows1
-
Bearing Material52100 Steel
-
Outside Diameter1-1/4 in
-
Bore Diameter3/4 in
- Long life, caged roller bearing
- Rollers guided by cage for reduced misalignment and reduced friction
- Precision ground on all surfaces
- Compact design allows for high load capacity and small cross section
- Unsealed design for maximum capacity
- 6000 lb dynamic/8700 lb static
-
UNSPSC31171512
-
Package Description1/PK
-
Standards/ApprovalsASPR|CAS|DFAR|FAR Standards|MS51961
-
Warranty90 Days
-
